Granite crushing
In the mining and construction aggregate processing industries, granite is highly sought after due to its high hardness and compressive strength, but its crushing has always been a challenge for the industry. With increasingly stringent environmental regulations and the decentralization of project sites, the limitations of fixed crushing production lines are becoming increasingly apparent. Against this backdrop, mobile granite crushers, with their superior flexibility and high efficiency, are becoming the preferred solution for an increasing number of companies. This article will provide an in-depth analysis of the key points for selecting a mobile granite crusher.
I. Why Does Granite Crushing Require Dedicated Mobile Equipment?
Granite is a hard rock, with a Mohs hardness typically between 6 and 7. This places extremely high demands on the wear resistance, crushing force, and process design of crushing equipment. Traditional fixed production lines involve large investments, long construction periods, and cannot move with the raw material location or construction site, leading to soaring transportation costs.

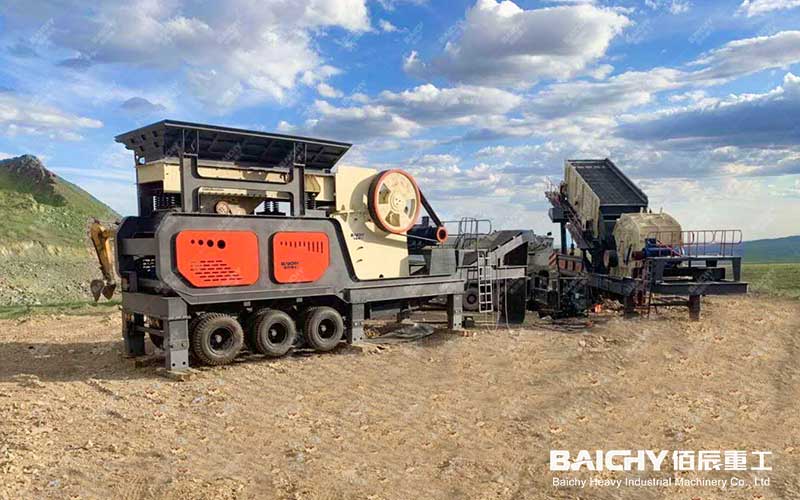

Mobile Granite Crushing Plant
Mobile granite crushers were developed to solve these pain points. They integrate feeding, crushing, screening, and conveying modules onto one or more mobile frames, allowing direct deployment to the mining site, achieving "crushing wherever the material is," significantly reducing raw material transportation costs and site infrastructure expenses.
II. Core Advantages of Mobile Granite Crusher
2.1 Unparalleled Mobility and Flexibility
The equipment can be equipped with tire-mounted or tracked walking mechanisms, with tracked mechanisms being particularly suitable for complex and rugged mining terrain. Relocation requires no disassembly; one-button remote control allows for rapid switching between multiple working faces or different project sites, enabling continuous operation.
2.2 Significantly Reduced Overall Operating Costs
It eliminates the long-distance transportation costs of raw materials from the mining point to the fixed crushing line. On-site crushing reduces dust and noise pollution over a wider area, while also saving on expensive fixed plant and concrete foundation construction investments.
2.3 Rapid Commissioning and High Capacity
Once the equipment arrives on site, almost no complex installation is required; simply connect to power (or start the onboard diesel engine) to begin production, significantly shortening the project preparation cycle. Modern high-performance crushing main units (such as jaw crushers and cone crushers) ensure that the single-machine processing capacity and finished product quality meet the needs of large-scale projects.
2.4 Enhanced Environmental Protection and Safety Performance
Most advanced models adopt multi-stage sealing and negative pressure dust removal designs, equipped with a spray system to effectively control dust. The enclosed screening and conveying structure reduces noise leakage and better complies with current stringent environmental regulations.
III. Key Selection Factors and Configuration Recommendations
3.1 Main Unit Type Selection: Jaw Crusher or Cone Crusher?

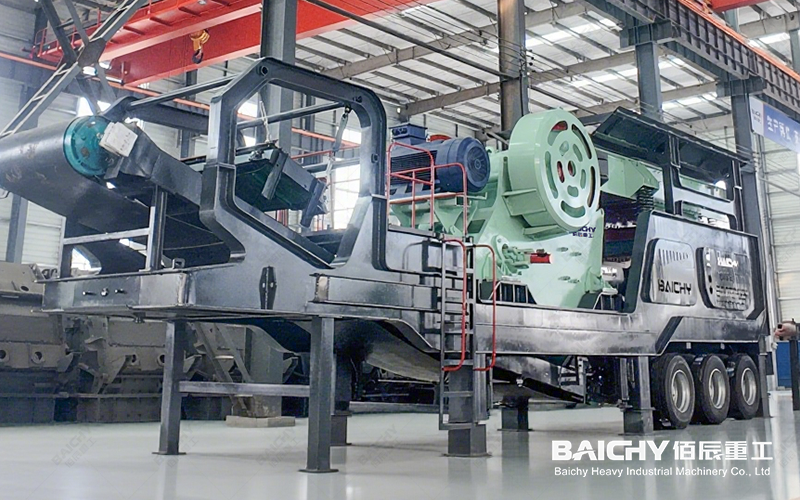

Mobile Jaw Crusher
• Mobile Jaw Crusher: The first choice for coarse crushing, with strong impact resistance, adept at processing large granite raw materials, and producing relatively coarse output particles. Suitable for the first stage of a crushing line.

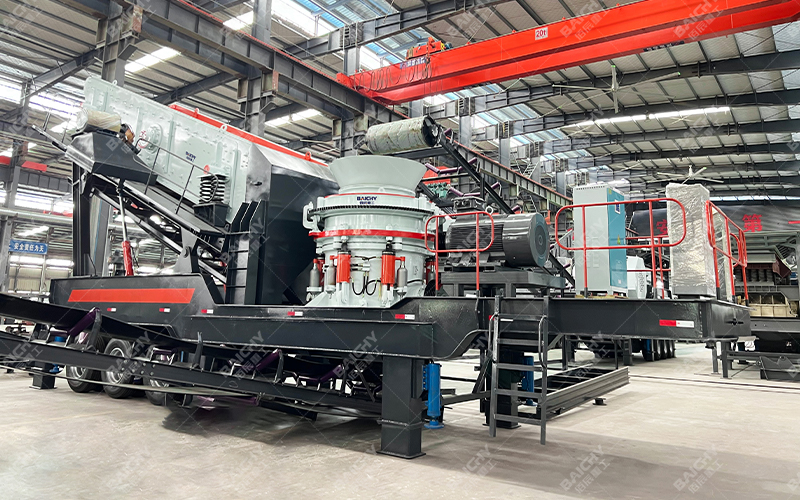

Mobile Cone Crusher
• Mobile Cone Crusher: As the core of medium and fine crushing, it adopts the principle of layered crushing, suitable for medium and fine crushing of granite, producing good particle shape and fewer needle-like and flaky particles, making it a key piece of equipment for producing high-quality aggregates (such as 12/13 gravel and manufactured sand).
Recommended Configuration: For high-hardness granite, a combination of "mobile jaw crusher + mobile cone crusher + mobile screening station" is typically used to form a complete mobile crushing and screening production line.
3.2 Drive Mode: Diesel or Electric?
• Diesel Drive: Powerful, fully self-sufficient, suitable for remote mining areas without power grid coverage, offering the highest flexibility.
• Electric Drive: Low operating costs, less noise and pollution, suitable for quarries with stable power grids or long-term fixed operation sites. Some models support "dual-fuel" operation, further enhancing adaptability.
3.3 Matching Capacity and Finished Product Requirements
Clearly define your project's annual output (e.g., 500,000 tons/year, 1,000,000 tons/year) and your requirements for the final aggregate specifications (e.g., 0-5mm, 5-10mm, 10-20mm). This is the fundamental basis for selecting the equipment model.
Granite Rock Crusher ,Mobile Jaw & Impact Crushing Plant
IV. Successful Case Sharing
Case Study: Green Upgrade Project of a Large Granite Mine in Southeast Asia
This mine originally used a fixed production line, resulting in high transportation costs. Our company configured a three-person unit consisting of a "tracked mobile jaw crusher + tracked mobile cone crusher + tracked mobile screening station". After the equipment was installed, crushing was carried out directly near the mountaintop mining face, and the finished aggregate was transported directly to the stockpile at the foot of the mountain via belt conveyor. The project achieved:
• Raw material transportation costs reduced by approximately 60%;
• Only 2 days from equipment arrival to discharge;
• Excellent aggregate particle shape, fully meeting the standards for high-speed rail construction;
• The entire crushing area achieved wet operation and enclosed dust removal, passing environmental protection acceptance.
V. Frequently Asked Questions (FAQ)
Q1: What is the lifespan of the wear parts when the mobile crusher processes granite? Is the cost high?
A: Considering the characteristics of granite, the core crushing components (such as jaw plates, grinding bowls, and crushing walls) are all made of ultra-high manganese steel or composite ceramic materials, and the cavity design has been optimized, significantly extending their service life. Through scientific equipment selection and the application of wear-resistant materials, the wear cost per ton of material can be controlled within a reasonable and economical range.
Q2: Can a mobile production line achieve the capacity and stability of a fixed line?
A: Absolutely. The core technology of modern high-end mobile crushers is the same as that of stationary equipment of the same level, and their performance parameters are consistent. The integrated and intelligent design of the entire machine even enhances its coordination. A single mobile production line can achieve an hourly output of 200-500 tons, and multi-machine combined operation can better meet the needs of large-scale production.
Q3: Is the equipment easy to repair and maintain in field mines?
A: This has been fully considered in the design. Major maintenance points (such as lubrication points, screen replacement side doors, and hammer hoisting devices) are easily accessible. The modular design allows for quick replacement of key components (such as vibrating screens and feeders). Furthermore, the remote intelligent monitoring system can provide early warnings of malfunctions, guide maintenance, and support online technical support.
