Limestone, a crucial raw material in construction, metallurgy, and chemical industries, requires crushing as its first step in processing. A well-designed limestone crushing process can effectively reduce output particle size, improve production efficiency, and control operating costs.
So, what equipment is needed for a standard limestone crushing production line? What is its process flow?
I. Core Process Flow

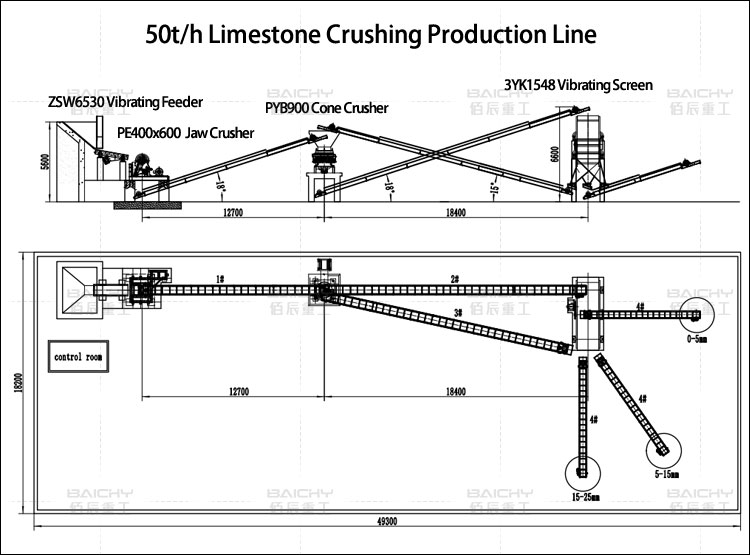

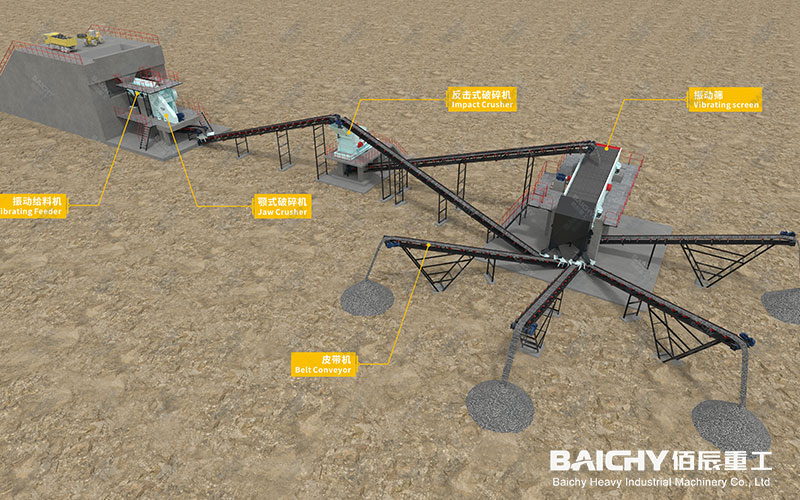

A standard limestone crushing process typically includes the following stages:
1. Feeding Stage: A vibrating feeder evenly and continuously feeds limestone from the raw ore bin into the coarse crushing equipment. This step is fundamental to ensuring the stable operation of subsequent processes.
2. Coarse Crushing Stage: Large pieces of limestone (with particle sizes reaching hundreds or even thousands of millimeters) are crushed to a medium particle size (usually below several hundred millimeters) in this stage. This is the most physically demanding part of the entire production line.
3. Medium and Fine Crushing Stage: The coarsely crushed material is further crushed to an even smaller particle size (usually below tens of millimeters), preparing it for final powder production or direct application.
4. Screening Stage: The vibrating screen classifies the crushed material according to particle size. Qualified finished products are sent out, while oversized materials are returned to the crusher for further crushing, forming a closed-loop cycle to ensure uniform particle size in the finished product.
II. Key Equipment Selection: Each with its own function, indispensable
Based on the above process, we need the following core equipment:
1. Vibrating Feeder
◦ Function: To feed the coarse crushing equipment evenly and quantitatively, preventing blockages or idling; it is the "choke point" of the production line.
◦ Selection Considerations: The processing capacity must match the coarse crushing equipment.
2. Coarse Crushing Equipment: Jaw Crusher
◦ Function: Responsible for the first crushing process, handling large raw materials with its powerful crushing force and high reliability. It features a simple structure and convenient maintenance.
◦ Selection Considerations: Select the model based on the maximum feed size and processing capacity.
3. Medium and Fine Crushing Equipment (Choose one or a combination based on product requirements)
◦ Impact Crusher:
▪ Advantages: Utilizes impact crushing principle, producing well-shaped, cubical particles with minimal over-grinding. Particularly suitable for producing aggregates for construction.
▪ Applications: Medium-hardness, low-abrasive materials; applications requiring high particle shape.
◦ Cone Crusher:
▪ Advantages: Employs layered crushing, resulting in high efficiency, low energy consumption, and long service life of wear parts. Suitable for handling high-hardness, high-abrasive materials with high-volume production needs.
▪ Applications: High-hardness materials; large-scale, continuous production lines.
4. Screening Equipment: Vibrating Screen
◦ Function: Classifies crushed materials according to different particle sizes; a key piece of equipment for controlling final product quality.
◦ Selection Considerations: Select based on screening efficiency, throughput, and the number of screen layers (number of finished products required).
5. Conveying Equipment: Belt Conveyor
◦ Function: Connects various pieces of equipment to form a complete production line. Responsible for the transfer of materials between processes.
(Optional) 6. Sand Making Equipment: Impact Crusher
• Function: If 0-5mm manufactured sand is required, a crusher is needed to shape and process the finely crushed product.
An efficient limestone crushing production line is the result of multiple pieces of equipment working together. Correct process design and appropriate equipment selection directly affect the quality, output, and production cost of the final product. Choosing an experienced equipment supplier to design a customized solution based on your specific raw material characteristics and product requirements is a wise move to maximize return on investment.
