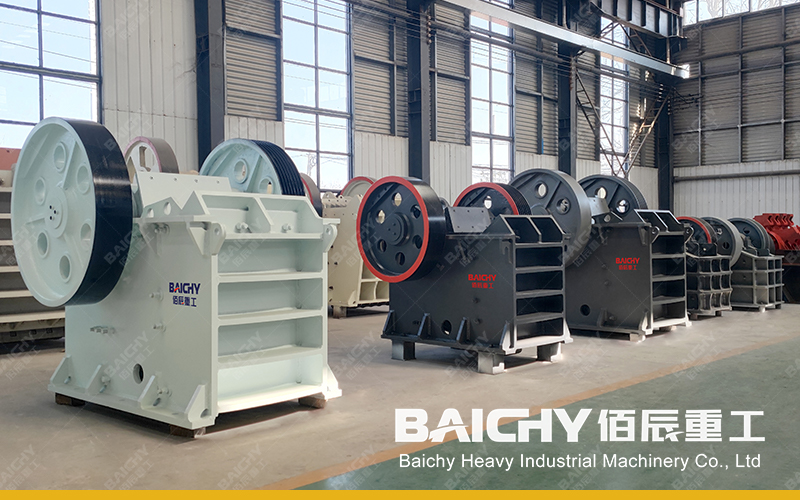

Jaw Crusher Machine
A jaw crusher machine breaks run-of-mine rock by compressing it between a fixed and a moving jaw plate, which places it as the primary jaw crusher in most aggregate, mining and cement lines. Baichy builds the jaw crusher machine in four series, PE, PEX, C and CJ, covering feed openings from 250x400 mm to 1500x2000 mm, maximum feed sizes from 210 mm to 1200 mm and rated capacities from 5 t/h to 1400 t/h.
Which Jaw Crusher Machine Fits Your Feed Size and Output?
Size a jaw crusher machine on three numbers: the largest lump in the feed, the outlet setting the next stage needs, and the target tonnes per hour. The largest lump narrows the field to one or two series, and the tonnage then picks the model size.
| Series | Duty | Representative Models | Max Feed (mm) | Capacity (t/h) |
|---|---|---|---|---|
| PE | Primary crushing | PE250×400 – PE1500×1800 | 210 – 1200 | 5 – 1100 |
| PEX | Fine crushing | PEX-250×1200 | 210 | 20 – 60 |
| C | Primary crushing, European style | C80 – C200 | 400 – 1200 | 50 – 1400 |
| CJ | Primary crushing, European style | CJ96 – CJ120 | 480 – 780 | 60 – 500 |
| Wheel-mounted | Mobile primary crushing | PE500×750, PE600×900, PE750×1060 | 425 – 630 | 40 – 250 |
The PE jaw crusher machine reaches a crushing ratio of 10:1, which is what lets one primary stage replace a two-stage circuit on medium-hard rock. The PEX fine jaw crusher is the fine-crushing step of the same range: it takes a 210 mm feed down to a 15-60 mm outlet on a 37 kW motor.

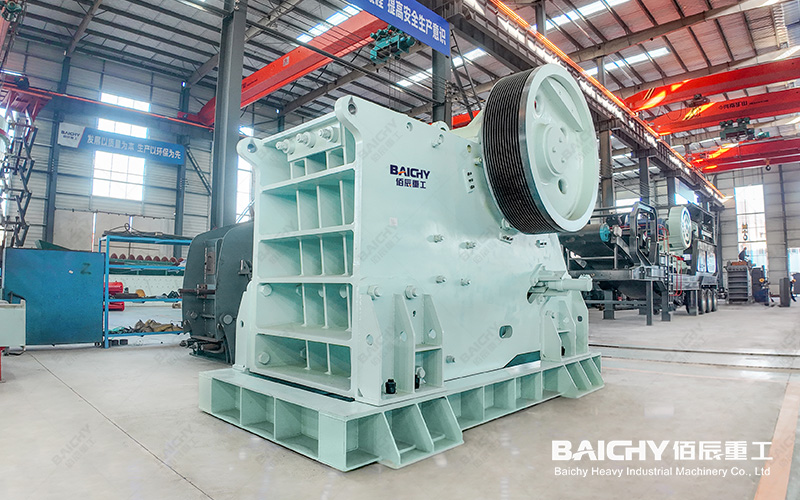

C-series Jaw Crusher

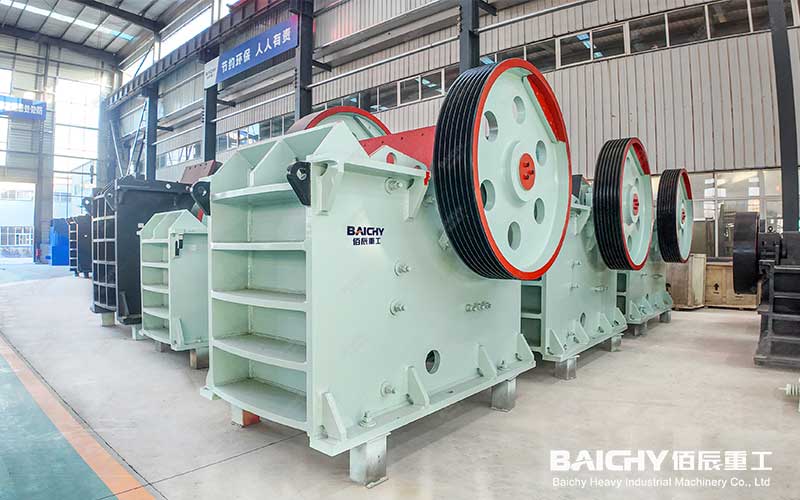

PE Series Jaw Crusher Machine Specifications and Models
The PE series is the primary-crushing line of the jaw crusher machine range: jaw crusher capacity runs 5 t/h to 1100 t/h across nine models from PE250x400 to PE1500x1800, on 15 kW to 280 kW motors.
| Model | Feed Opening (mm) | Max Feed Size (mm) | Outlet Adjusting Range (mm) | Capacity (t/h) | Motor Power (kW) | Overall Dimension (mm) |
|---|---|---|---|---|---|---|
| PE250×400 | 250×400 | 210 | 25–60 | 5–20 | 15 | 1215×1240×1210 |
| PE400×600 | 400×600 | 350 | 40–90 | 15–60 | 30 | 1700×1750×1680 |
| PE500×750 | 500×750 | 425 | 50–100 | 40–130 | 45 | 2150×1900×1950 |
| PE600×900 | 600×900 | 500 | 60–125 | 90–180 | 55 | 2500×2010×2350 |
| PE750×1060 | 750×1060 | 630 | 60–150 | 110–380 | 110 | 2630×2310×3110 |
| PE900×1200 | 900×1200 | 750 | 95–165 | 220–450 | 132 | 3720×2850×3250 |
| PE1000×1200 | 1000×1200 | 850 | 200–300 | 280–560 | 160 | 3820×2850×3250 |
| PE1200×1500 | 1200×1500 | 1020 | 150–300 | 400–800 | 220 | 4590×3342×3553 |
| PE1500×1800 | 1500×1800 | 1200 | 210–360 | 520–1100 | 280 | 5100×4700×4300 |
Output varies according to different materials, feed particle size and other factors, as the source table states.
Model choice usually follows the line scale rather than one figure. Below 100 t/h Baichy pairs PE250x400 or PE400x600 with the circuit; at 100-300 t/h it pairs PE600x900 or PE750x1060; above 300 t/h it pairs PE900x1200 with a C-series jaw crusher.
How Does a Jaw Crusher Machine Work?
A jaw crusher machine reduces rock in three repeating steps, feeding, extrusion between the jaw plates and discharge, driven by an eccentric shaft and a flywheel at a crushing ratio of up to 10:1. The jaw plates are high manganese steel on a high-strength frame, which is what makes a jaw crusher for granite and basalt workable without frequent plate replacement.
The outlet is adjustable, so one jaw crusher machine can be switched between roadbed material and building aggregate.

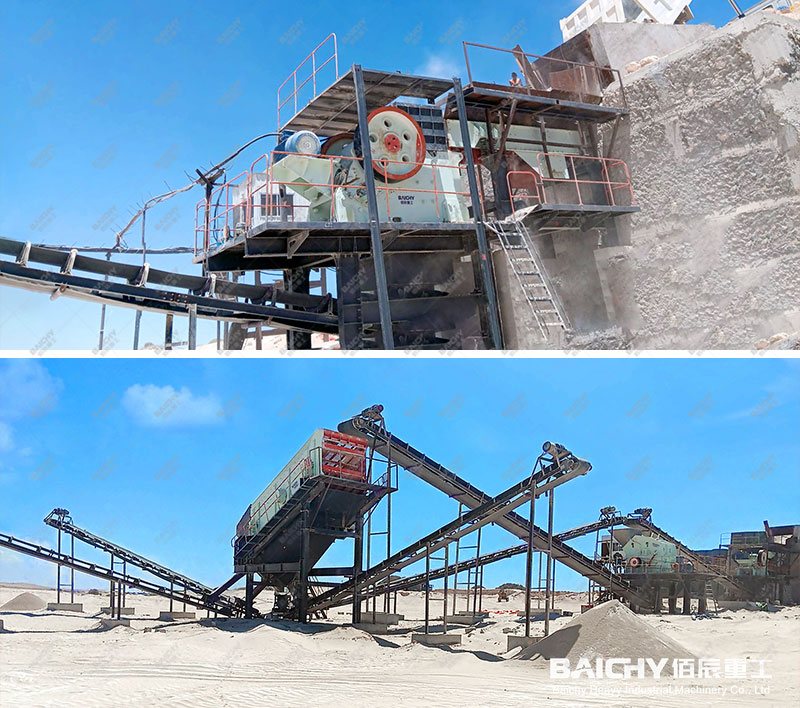

Stationary-crushing-production-line
How Do You Configure a Jaw Crusher Machine into a Complete Crushing Line?
A jaw crusher machine runs either as a fixed plant or as a mobile jaw crusher station, and the choice follows the number of sites and the project duration. A fixed line puts a ZSW vibrating feeder ahead of the jaw crusher machine, a cone crusher or impact crusher behind it and a YK vibrating screen at the end, giving the lowest cost per ton on one long-term site.
The mobile jaw crusher station covers three models: PE500X750 rated 40-100 t/h with a 425 mm maximum feed, PE600X900 rated 80-150 t/h with 500 mm, and PE750X1060 rated 130-250 t/h with 630 mm, each with its own ZSW feeder. Baichy reports that a Mexican iron mine line built on a PE600x900 jaw crusher machine reached a target output of 120 t/h, and that mobile operation across dispersed pits in a Brazilian quarry cut transport costs by 40 percent.
FAQ: Jaw Crusher Machine
1. What is a jaw crusher machine used for?
A jaw crusher machine does the primary crushing stage: it takes run-of-mine rock and reduces it to a size the second stage accepts. Baichy specifies the jaw crusher machine for granite, basalt, iron ore, gold ore, copper ore and limestone, across feed sizes from 210 mm to 1200 mm.
2. What is the maximum feed size of a jaw crusher machine?
Maximum feed size runs from 210 mm on the PE250x400 to 1200 mm on the PE1500x1800, and it is a per-model figure rather than a series figure. The PE600x900 jaw crusher machine takes 500 mm against a 600x900 mm feed opening, so the largest lump stays inside the opening width.
3. What capacity can a jaw crusher machine reach?
The PE jaw crusher machine range is rated 5-1100 t/h and the C series 50-1400 t/h on the published test conditions. Baichy states that output varies with material and feed particle size, so the rated figure is a sizing input rather than a site result.
4. Which materials can a jaw crusher machine process?
Granite, basalt, iron ore, gold ore, copper ore and limestone are the materials Baichy specifies for the jaw crusher machine, covering metallic and non-metallic rock. Abrasive hard rock is the intended case, and the high manganese steel jaw plates are specified for that duty.
5. What does a jaw crusher machine cost?
A jaw crusher machine is quoted per project rather than per model, because jaw plate grade, drive configuration and control level change the price of one model size. Send the material, the maximum feed size in mm and the target output in t/h for a quotation.
