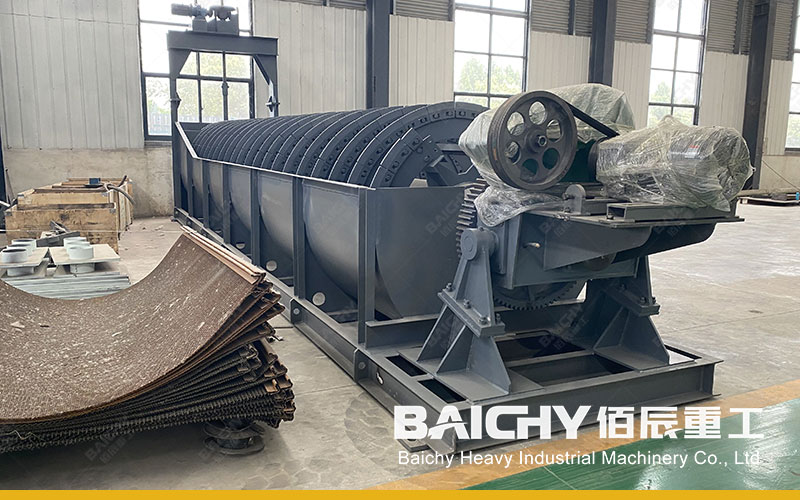

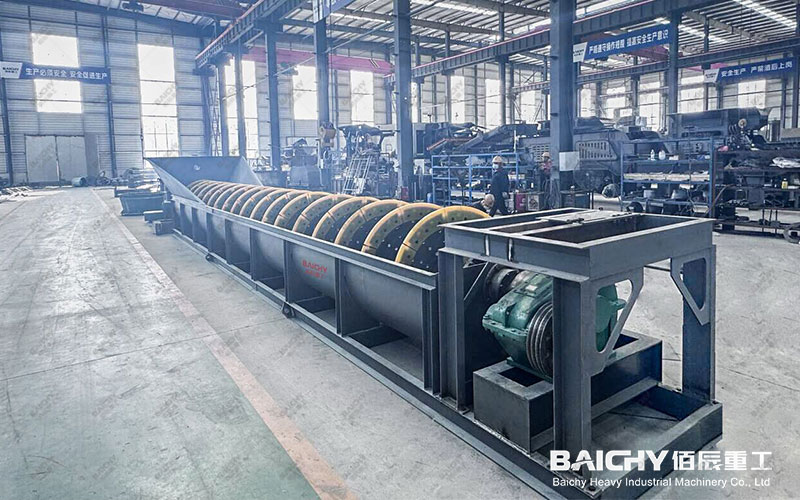

Spiral sand washing machines are divided into single spiral sand washing machines and double spiral sand washing machines. Compared with single spiral sand washing machines, double spiral sand washing machines have the characteristics of high efficiency and large output, and can handle a wider range of materials.
Spiral sand washing machine is a kind of efficient sand washing equipment, which mainly stirs and washes sand and gravel through the spiral device in the equipment.
Spiral sand-washing machine is a kind of sand-washing equipment used in conjunction with a sand sand-making machine, which is mainly used to clean and separate stone powder and soil in sand and gravel. It is widely used in metallurgy, building materials, hydropower, highways, construction, and other industries to wash, grade, and remove impurities of fine and coarse-grained materials.
Working principle of spiral sand washing machine
The working principle of the spiral sand washing machine is that the motor drives the impeller to rotate slowly through V-belts, reducers, and other components. The material enters the washing tank from the feed tank and rolls under the drive of the impeller to remove impurities covering the surface of the sandstone. Impurities and foreign matter with smaller specific gravity will be taken away and discharged from the washing tank in time, thus completing the cleaning function. The cleaned sand and gravel aggregates are taken away by the blades and poured into the discharge trough from the rotating impeller to complete the cleaning function of sand and gravel.
The spiral sand washing machine is mainly composed of a body, a motor, blades, a reducer, a central shaft, a sand washing tank, a feed port, a sand outlet, etc. These components work together to ensure the normal operation and efficient cleaning effect of the equipment.
Features and advantages of spiral sand washing machine
1. Low power consumption: The power consumption of the spiral sand washing machine is relatively small during operation, which helps to reduce production costs.
2. High cleaning degree: The equipment can effectively clean and separate the stone powder and soil in the sand and gravel, and improve the quality of the sand and gravel.
3. Good sealing structure: The novel sealing structure is adopted to ensure that the equipment will not leak materials or moisture during operation.
4. Fully enclosed transmission device: The fully enclosed transmission device improves the safety and durability of the equipment.
Adjustable weir plate: The design of the adjustable weir plate enables the equipment to adapt to the cleaning needs of different materials and improve the cleaning effect.
5. High efficiency and durability: The spiral sand washing machine has a compact structure, simple operation, and convenient maintenance, and has high working efficiency and long service life.
