The particle size range of high-quality limestone machine-made sand is usually between 0-5mm. This size of limestone aggregate is suitable for occasions where fine particles are required, such as the fine aggregate part in the concrete mix.
10-20mm: This size of limestone aggregate is widely used in many fields, including construction, road paving, etc. Its moderate particle size can provide good mechanical properties and meet certain economic requirements.
16-31.5mm: Also as a kind of fine aggregate, this slightly larger particle size of limestone aggregate is also used in certain specific projects, such as concrete mix ratios that require larger particle size aggregates.

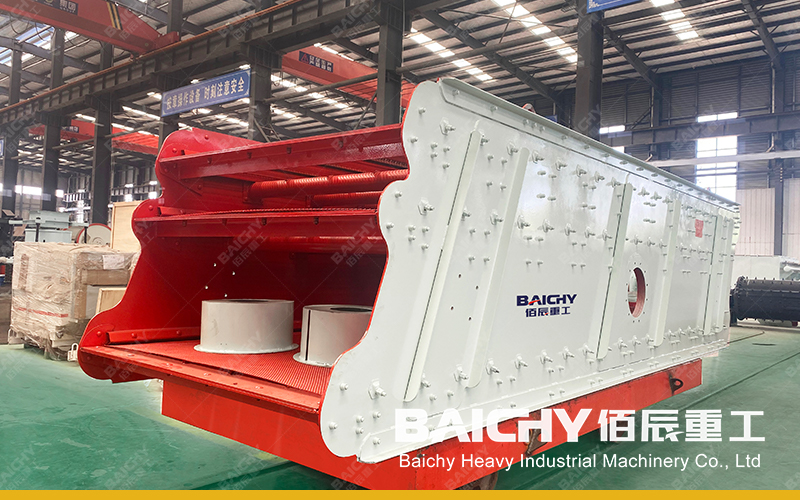

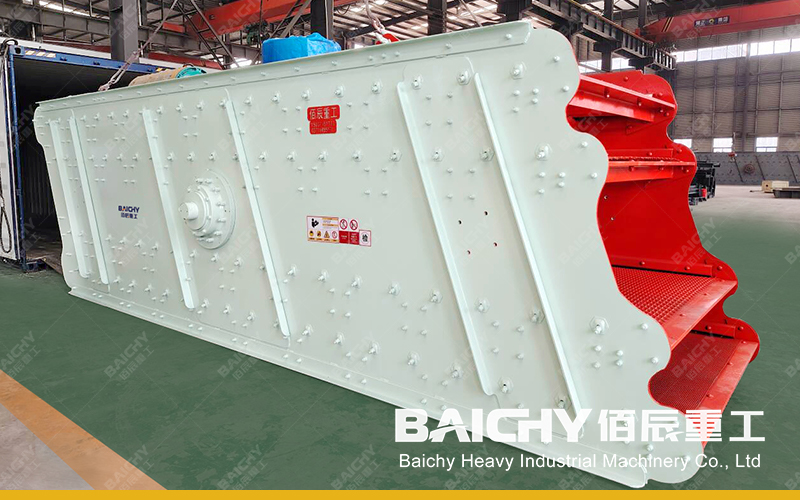

3YK1860 vibrating screen is a multi-layer circular vibrating screen, which is widely used in mining, building materials, chemical, and other industries, especially suitable for screening materials such as limestone. The "3YK" in its model means a three-layer circular vibrating screen, and "1860" usually represents the size of the screen surface or a certain specification parameter.
According to different material characteristics and screening requirements, the processing capacity of the 3YK1860 vibrating screen is usually between 32-350t/h, which can fully meet the screening needs of 100tph limestone crushing equipment. Three layers, which means it can separate 3-4 materials of different particle sizes at the same time, improving screening efficiency.
• Feed particle size: ≤450mm, ensuring that large particles can also enter the screening process smoothly. • Motor • • Power: Generally between 18.5-22kW, providing sufficient power for the vibrating screen.
• Vibration frequency: 800-970r/min, high-frequency vibration helps to improve screening efficiency and screening accuracy.
3YK1860 vibrating screen features and advantages
1. Efficient screening: multi-layer screen surface design, screening multiple particle sizes at a time, improving screening efficiency.
2. High screening accuracy: high-frequency vibration and reasonable screen design to ensure screening accuracy.
3. Strong structure: Made of high-quality materials, the structure is strong and durable, and can adapt to harsh working environments.
4. Easy maintenance: Reasonable design, easy maintenance, and replacement of wearing parts such as screens.
3YK1860 vibrating screen application scenarios
3YK1860 vibrating screen is particularly suitable for screening materials such as limestone and is widely used in mining, building materials, chemical, and other industries. In the limestone crushing production line, it can be used as one of the key equipment to screen the crushed limestone to meet the product requirements of different particle size requirements.
