In mining crushing and sand-making production lines, when coarse-crushed materials require secondary and fine crushing to obtain uniformly sized finished products that meet the requirements of the next process or for direct use, a stable, reliable, and efficient crusher with a suitable crushing ratio and fine output becomes a crucial component. As a leading manufacturer of mining crushing and sand-making equipment with many years of experience in the industry, we understand the decisive impact of the fine crushing process on the final product quality and production line efficiency. Among numerous fine crushing equipment options, the PEX series fine jaw crusher has become the wise choice for many customers due to its unique structural design and reliable performance. This article will provide an in-depth analysis of how the PEX jaw crusher achieves "fine crushing" and how it creates value for your production.

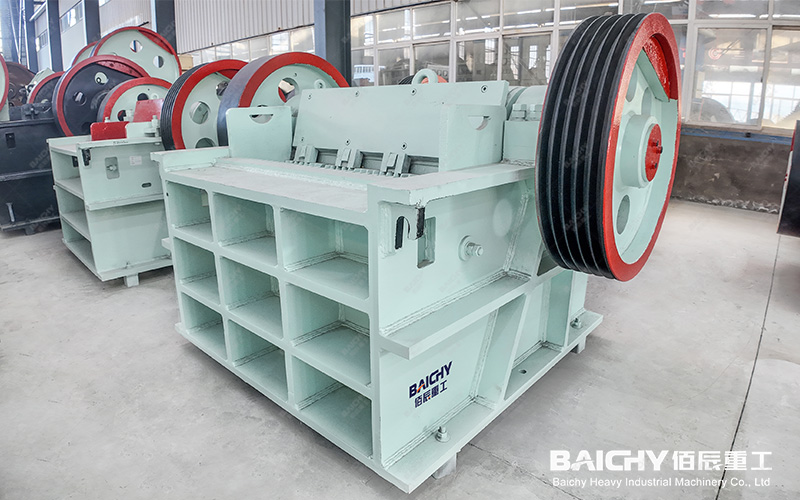

I. PEX Fine Jaw Crusher: A Precisely Positioned "Secondary Crushing Expert"
Unlike the PE series jaw crushers used for primary coarse crushing, the PEX series (commonly known as "fine jaw crusher") is specifically designed for secondary and fine crushing operations. Its design purpose is to build an efficient bridge between coarse crushing (usually completed by PE jaw crushers or heavy-duty hammer crushers) and final shaping/sand making (completed by impact crushers and cone crushers). It is particularly suitable for processing various ores and rocks with compressive strength not exceeding 250MPa, such as limestone, granite, basalt, and river pebbles, making it an ideal equipment for producing construction aggregates, road base materials, and concrete aggregates.
II. Core Advantages: Why Can PEX Handle the "Fine Crushing" Task?
Fine and uniformly adjustable output particle size: The most significant feature of the PEX fine jaw crusher is its longer crushing chamber and smaller discharge opening adjustment range. Its output particle size is usually between 20-60mm, and can even be finer, with a uniform particle size distribution and low flaky content. This is due to the unique movement trajectory of its movable jaw, which has a larger stroke in the lower part of the crushing chamber, applying strong compression and grinding forces to the material, effectively achieving further material refinement.
Robust structure and reliable operation: It inherits all the advantages of traditional jaw crushers: simple structure, convenient maintenance, and low operating costs. The overall steel frame structure ensures the stability of the equipment under heavy loads. The movable and fixed jaw plates, cast from high-manganese steel, possess extremely high wear resistance and impact resistance, effectively handling the continuous crushing of hard materials.
Higher crushing ratio and production efficiency: Despite being a secondary crusher, the PEX series, with its optimized deep-cavity crushing chamber and larger swing angle, can still achieve a high crushing ratio. A single machine can crush coarsely crushed materials (such as 100-200mm) to the required intermediate particle size in one pass, simplifying the process and improving overall production efficiency.
Low energy consumption and low operating costs: Compared with cone crushers or impact crushers with the same processing capacity, the PEX fine jaw crusher usually has advantages in power consumption. Its simple mechanical structure results in fewer types of wear parts and less complex maintenance. Daily maintenance only requires monitoring the wear of the jaw plates, significantly reducing long-term operating and maintenance costs.
III. Application Scenarios: Where does the PEX fine jaw crusher excel?
As the original manufacturer, based on our extensive project experience, we have summarized the most suitable application scenarios for the PEX fine jaw crusher:

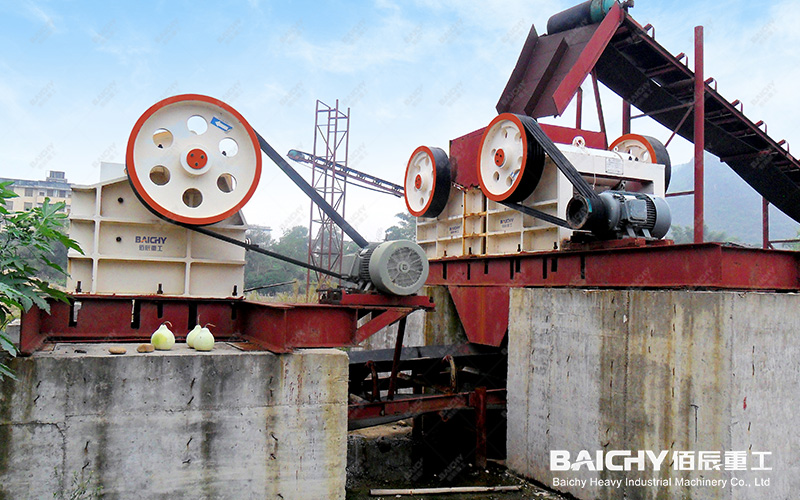

Small and medium-sized sand and gravel aggregate production lines: As the core secondary crushing equipment, it is combined with PE coarse jaw crushers and sand making machines or vibrating screens to form a classic "two-stage closed-circuit" or "three-stage crushing" process, efficiently producing various specifications of crushed stone.
Intermediate crushing stage in ore processing: In concentrators, it is used to crush coarsely crushed ore to a particle size suitable for ball mill feeding (e.g., -30mm), and is a key piece of equipment for pre-grinding crushing.
Construction waste recycling: Used for secondary fine crushing of initially sorted and crushed construction waste (such as concrete blocks and waste bricks and tiles) to obtain pure recycled aggregate.
Laboratory or small-scale test lines: Due to its compact structure, simple operation, and controllable output, it is also often used for sample preparation and process testing in laboratories or pilot plants. IV. The Deep Value of Sourcing from the Original Manufacturer: More Than Just Selling a Piece of Equipment
Choosing to purchase PEX fine jaw crushers from us, the original manufacturer, will provide you with benefits far beyond the equipment itself:
Professional Selection Guidance: Based on your raw material hardness, feed size, target output, and discharge requirements, we will accurately calculate and recommend the most suitable PEX model (such as PEX-250×1000, PEX-300×1300, etc.), avoiding waste caused by oversized selection or bottlenecks caused by undersized selection.
Core Component Quality Assurance: We strictly control the materials and heat treatment processes of core components such as jaw plates, eccentric shafts, and bearings. For example, we use an optimized high-manganese steel formula and advanced water quenching treatment to ensure that the jaw plates maintain sufficient toughness while achieving high hardness, making them both wear-resistant and fracture-resistant, extending their service life.
Flexible Customization and Adaptation: We can provide customized motor power, protective devices, or adjust the frame structure to suit specific installation spaces according to your special needs. We also provide a full range of supporting equipment, including feeders, vibrating screens, and conveyors, to ensure efficient and coordinated operation of the entire line.
Full Lifecycle Service Support: From basic installation guidance drawings and operation manuals to on-site commissioning services, operator training, timely supply of original spare parts, and long-term technical consulting, we are committed to being your reliable partner, ensuring stable operation of the equipment throughout its entire lifecycle.
In today's pursuit of refined production and cost control, a high-performance, economically operating PEX fine jaw crusher is a powerful tool for optimizing your secondary crushing process, improving aggregate product quality, and reducing overall costs. With its classic reliability and efficient specialization, it still occupies an irreplaceable important position in modern crushing production lines. As the original manufacturer, we not only provide durable equipment but also provide solutions based on extensive experience and trustworthy long-term service. Welcome to contact us to obtain exclusive PEX fine jaw crusher technical solutions and quotations, and let fine crushing inject new efficiency and quality vitality into your production.
Q: What are the main differences between the PEX fine jaw crusher and the standard PE jaw crusher?
A: The main differences lie in their positioning and output particle size. The PE series is a primary crushing equipment, used for the first stage of crushing in a production line, handling large raw materials, and producing a coarser output particle size (usually >50mm). The PEX series is a secondary and tertiary crushing equipment, used for the second or third stage of crushing, with a smaller feed size but a finer and more uniform output particle size (usually 20-60mm). Its crushing chamber is deeper and longer, making it more suitable for fine crushing.
Q: Compared to cone crushers and impact crushers, what are the advantages and disadvantages of the PEX fine jaw crusher in secondary crushing?
A: Advantages: Simpler structure, usually lower purchase and maintenance costs; less sensitive to material moisture content, less prone to clogging; robust equipment, especially good at handling medium to high hardness materials. Disadvantages: Crushing efficiency (tons/hour·power) may be lower than modern high-performance cone crushers; the product particle shape (more angular) is usually not as round as that of impact crushers or vertical shaft impact crushers. The choice should be based on a comprehensive consideration of material hardness, particle shape requirements, and investment budget.
Q: We want to use it to process granite. What is the approximate lifespan of the wear parts (jaw plates)?
A: The lifespan of the jaw plates depends on the abrasiveness of the granite, the feed particle size, the output, and the quality of the jaw plate material. As the original manufacturer, we use high-quality high-manganese steel (Mn13, Mn18) or higher-grade alloy steel to manufacture the jaw plates. Under normal working conditions, when processing granite, the lifespan of a set of jaw plates is usually several hundred to over a thousand hours. We can estimate and provide a wear part consumption cost analysis based on your specific output. The symmetrical design allows for reversing the plates when one end is worn, reducing replacement costs.
Q: What is the approximate hourly output of a PEX-250×1000 model? What size motor is needed?
A: The output of the PEX-250×1000 is not a fixed value; it depends on the hardness and density of the material, the feed particle size, and the discharge opening setting. Generally, when processing medium-hardness limestone, with the discharge opening adjusted to approximately 30mm, the production capacity ranges from 10 to 40 tons per hour. This model is typically equipped with a 30-37kW (approximately 40-50 horsepower) motor. For the most accurate production capacity and power configuration, please provide specific material information, and our engineers will calculate and confirm it for you.
Q: Can you provide a complete production line design solution including the PEX fine jaw crusher?
A: Absolutely. This is one of our core services as an original equipment manufacturer and solution provider. Based on your raw material characteristics, target capacity, finished product specifications, and budget, we can design the most economical and efficient complete production line process flow diagram for you free of charge. This includes front-end feeding and primary crushing equipment (such as PE jaw crushers), the PEX fine jaw crusher in the middle section, and back-end screening and conveying equipment, as well as terminal sand making or sand washing equipment. We will also provide matching equipment selection and layout solutions for all equipment.
