How Does A Hammer Mill For Gold Extraction Work?

How Does a Hammer Crusher Work? - Unveiling the Art and Innovation of Crushing in Gold Extraction

2024-08-08 09:56:01
Baichy
plays
Warm Tip:

If you want to know more details about equipment, solutions, etc, please click the button below for free consultation, or leave your requirements!

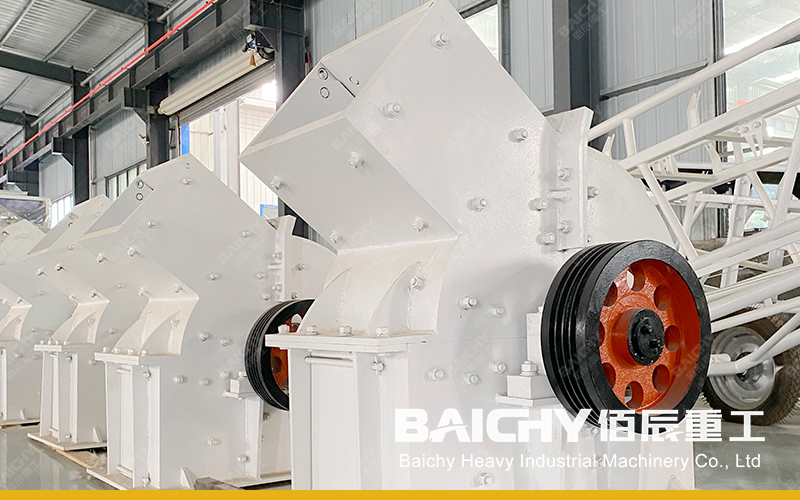

How Does A Hammermill For Gold Extraction Work.jpg

In the long gold extraction industry chain, ore crushing is the first critical step. The hammer crusher, a traditional yet highly efficient crushing machine, has long played a pioneering role in gold ore pre-processing. But have you ever wondered how this seemingly rugged machine, with its "violent aesthetic," paves the way for gold extraction? Today, we'll delve deeper into its workings and reveal hidden technical details.

1. More Than Just "Crushing": How the Hammer Crusher Works

The core design of a hammer crusher is based on the principle of dynamic impact crushing. Unlike the extrusion crushing of a jaw crusher or the lamination crushing of a cone crusher, a hammer crusher relies on the instantaneous impact of high-speed rotating hammers on the material, simultaneously achieving multiple crushing effects through collisions between the material and the liner, as well as between the materials themselves.

When gold ore enters the crushing chamber from the feed inlet, it first encounters the high-speed rotating hammers (typically exceeding 1000 rpm) driven by the rotor. These hammers are typically made of high-manganese steel or alloy steel, offering exceptional hardness and wear resistance. The ore is crushed into smaller particles by the powerful impact of the hammers, which then throw it toward the crushing plates inside the crushing chamber for secondary crushing.

After multiple collisions, material meeting the required particle size is discharged through the gaps in the bottom sieve plate, while larger particles remain in the crushing chamber until they are reduced to the required size. This design ensures uniformity in the output particle size, creating favorable conditions for subsequent grinding and cyanide leaching.

II. Why are hammer crushers so popular in gold extraction?

1. Efficient Dissociation: Gold ore typically exists as gangue, with gold particles embedded in minerals such as quartz. The impact crushing of hammer crushers allows for crushing along mineral grain boundaries, which facilitates gold dissociation and improves subsequent recovery rates.

2. Compatibility with Clay-Containing Materials: Compared to other crushing equipment, hammer crushers are more adaptable to gold ores with high clay content and are less prone to clogging. This advantage is particularly important given the presence of clay minerals in many gold deposits.

3. Precise Particle Size Control: By adjusting the sieve plate gap size, the output particle size can be precisely controlled to avoid over-crushing. This is crucial for gold recovery, as overly fine ore powder increases grinding energy consumption and cyanide consumption.

4. Simplified Process Flow: A single heavy-duty hammer crusher can often replace both primary and secondary crushing equipment, achieving "one machine, two stages of crushing," significantly simplifying the overall layout of a gold processing plant.

III. Innovative Applications: The Technological Evolution of Hammer Crusher in Modern Gold Extraction

With technological advancements, the application of hammer crushers in gold extraction is also constantly evolving:

The introduction of intelligent control systems enables modern hammer crushers to monitor rotor current, bearing temperature, and vibration parameters in real time. When encountering difficult-to-crush materials (such as steel picks and other metallic debris encountered in underground mining), they automatically reverse and eject foreign matter, preventing equipment damage.

How Does A Hammermill For Gold Extraction Work 00.jpg

Upgraded wear-resistant materials significantly extend the service life of the hammer heads. Some advanced mines use hammer heads inlaid with tungsten carbide, which can achieve a lifespan 3-5 times that of traditional high-manganese steel hammer heads when crushing high-hardness gold-quartz vein ore.

Innovation in Combined Processes: Some gold concentrators now use hammer crushers and roller crushers in a combined crushing system. The hammer crusher serves as the primary crushing device, producing a -25mm product. The product is then crushed to -8mm by the roller crusher and fed directly into the heap leaching plant, eliminating the need for grinding and leaching mixing, significantly reducing investment and operating costs.

IV. Beyond Conventional Applications: Special Applications of Hammer Crusher in Gold Recovery

In addition to conventional gold ore crushing, hammer crushers also demonstrate unique value in processing some specialized gold materials:

• Electronic Waste Recycling: When processing gold-bearing electronic waste, hammer crushers can effectively break down materials such as circuit boards, separating metals from non-metals, and creating conditions for subsequent precious metal extraction.

• Tailings Reprocessing: The material in old tailings ponds often already has a certain particle size, but requires re-crushing to meet the requirements of modern extraction processes. Hammer crushing is the preferred method due to its large processing capacity and adaptability.

• Gold-bearing Smelting Slag Processing: The gold-bearing slag produced during the metallurgical process is highly hard and has a complex composition. Hammer crushing is an effective method for crushing this material.

The hammer crusher may not be the most dazzling piece of equipment in the gold extraction process, but it is an indispensable foundational link in the entire process chain. Its simple yet efficient design concept has survived for centuries and still plays a vital role in modern gold processing plants. With technological advancements and process innovations, this traditional crushing equipment is constantly being revitalized, continuing to contribute silently to humanity's recovery of this precious metal.
