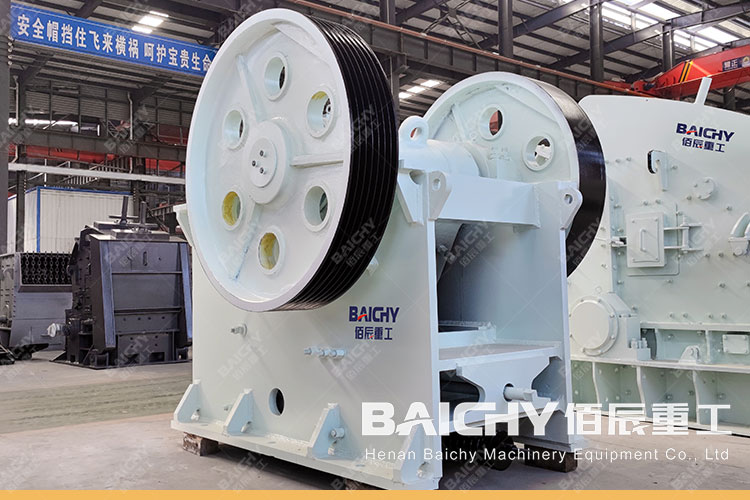

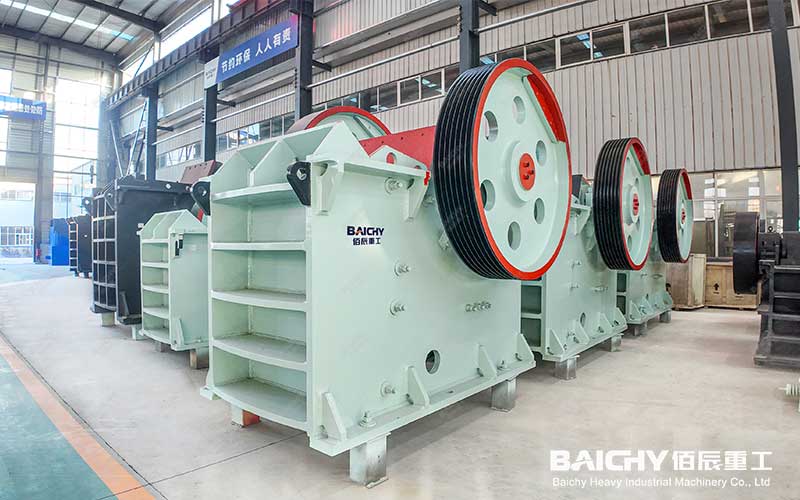

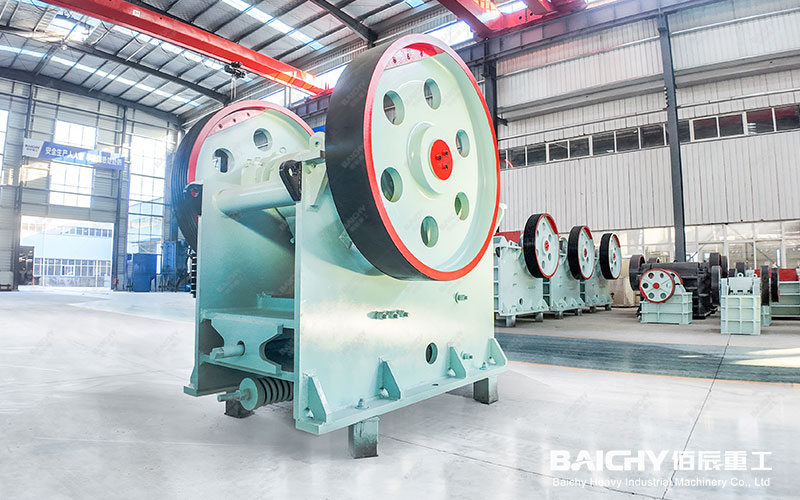

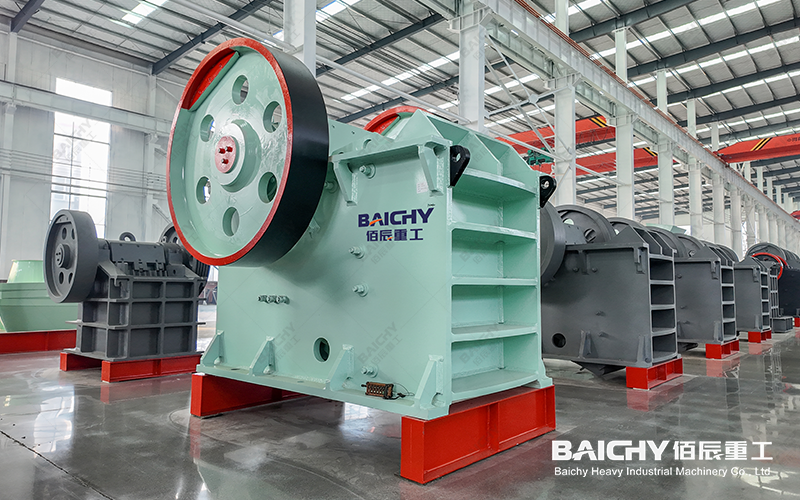

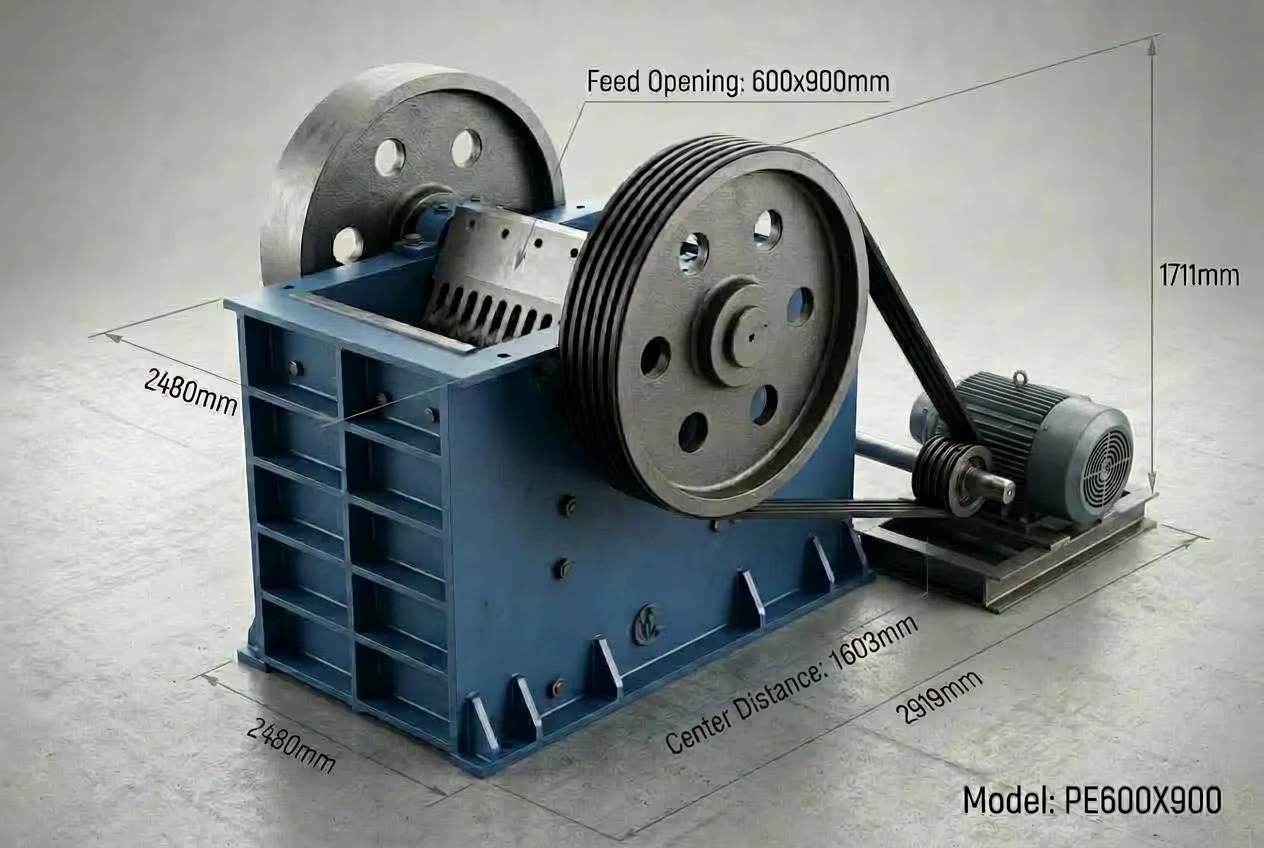

The PE600x900 jaw crusher is named after its feed opening size of 600mm×900mm. It is a small and medium-sized jaw crusher. It is often used as coarse crushing equipment in the crushing production line and can handle medium-sized crushing of various ores and bulk materials.
Depending on the specific configuration and material properties, the processing capacity of the PE600x900 jaw crusher is generally between 50-180t/h, and the motor power is 55kw.

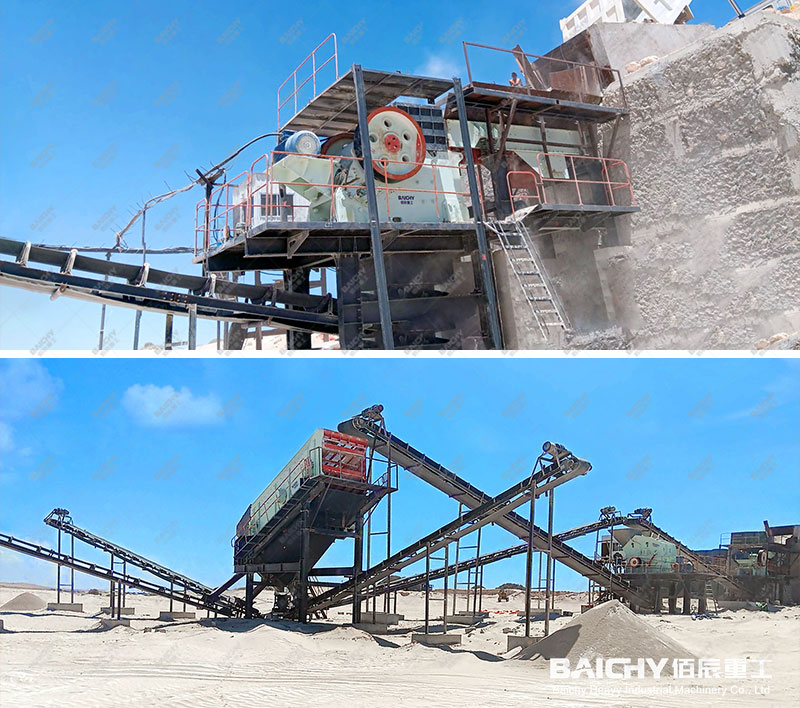

The PE600x900 jaw crusher is widely used in mining ore dressing and crushing production lines, smelting ore dressing production lines, building materials and stone production lines, highway sand and gravel production lines, railways, water conservancy, and chemical industries. It can crush various ores and materials with a compressive strength of no more than 320MPa, such as granite, limestone, bluestone, river pebbles, basalt, etc.
What is the working principle of the PE600x900 jaw crusher?
The working principle of the PE600x900 jaw crusher is based on the flexural extrusion type crushing method. The motor drives the belt and pulley to move the movable jaw up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger, pushing the movable jaw plate close to the fixed jaw plate, and the material is squeezed, rubbed, and crushed; when the movable jaw descends, the angle between the toggle plate and the movable jaw becomes smaller, and the movable jaw plate leaves the fixed jaw plate under the action of the pull rod and spring, and the crushed material is discharged from the lower opening of the crushing chamber. As the motor rotates continuously, the movable jaw of the crusher performs periodic crushing and discharging to achieve batch production.
PE600x900 jaw crusher equipment features
1. Large crushing ratio: The crushing chamber is deep and has no dead zone, which improves the feeding capacity and output, and ensures uniform discharge particle size.
2. Simple structure: The equipment is compactly designed, reliable in operation, and easy to use and maintain.
3. Low noise and less dust: It adopts advanced noise reduction and dust removal technology to meet environmental protection requirements.
4. Low operating costs: The lubrication system is safe and reliable, parts are easy to replace, and equipment maintenance is simple.
5. Energy-saving and high efficiency: the energy saving of a single machine can reach 15%-45%, and the energy-saving effect of the system is more significant.
6. Flexible adjustment: the adjustment range of the discharge port is large, which can meet the requirements of different users.
