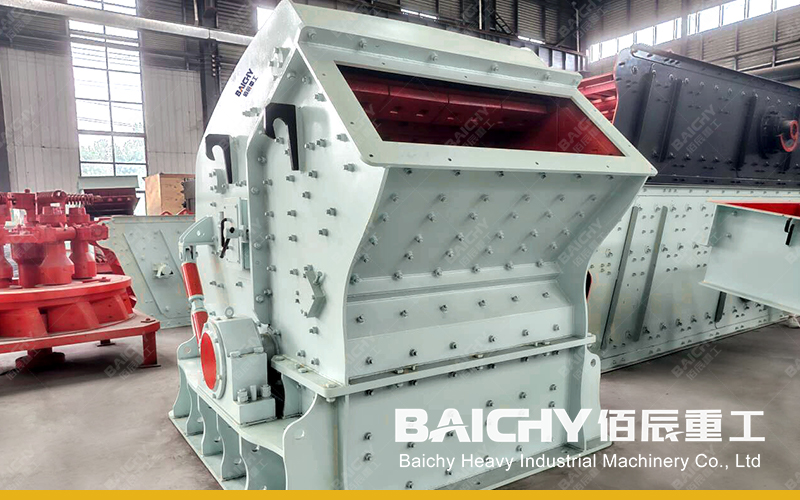

PF impact crusher is a high-efficiency crushing equipment commonly used for secondary crushing; it is a crushing machine that uses impact energy to crush materials. It has been optimized and upgraded with advanced technologies at home and abroad and has the advantages of a large crushing ratio, high crushing efficiency, large production capacity, small discharging particle size, and uniform product particle size.
This equipment is particularly suitable for crushing medium-hard materials such as ores and rocks, and its compressive strength processing capacity can reach 350~360 MPa.
Working principle of PF impact crusher
The motor drives the rotor to rotate at high speed through the V-belt. After the material enters the crusher, it is first crushed by the high-speed impact of the plate hammer on the rotor and then thrown onto the impact device (such as the impact liner) for crushing again. The crushed material bounces back from the impact liner to the plate hammer action area for re-crushing. This process is repeated until the material is crushed to the required particle size and finally discharged from the discharge port.
PF impact crusher is very suitable for use as secondary crushing equipment due to its high efficiency and large crushing ratio. In mining, construction, chemical, metallurgical, and other industries, it is often used to further crush the material after primary crushing to meet the needs of subsequent processes.
PF impact crusher advantages:
1. Uniform material: The crushed material is in cubic particles with uniform particle size and no internal cracks, which is conducive to subsequent processing and use.
2. High production capacity: large feed inlet and high crushing chamber, suitable for high material hardness, can process various common ores, and the product has less stone powder.
3. Wear-resistant and long life: high chromium plate hammer and other wear-resistant materials are used, which are impact-resistant and wear-resistant, and the equipment has a long service life.
4. Environmental protection and energy saving: equipped with complete dust collection and noise reduction devices to reduce dust and noise pollution during the production process.
PF impact crusher has a variety of models to choose from, such as PF-0807,
PF-1007, PF-1010, PF-1210,
PF-1214,
PF-1315, PF-1520, etc. Different models of crushers have different parameters such as feed particle size, production capacity, motor power, etc. Users can choose the appropriate model according to their actual needs.
Baichy Machinery is a factory supplier of mining machinery, mainly focusing on stone crushers, powder grinding mills, and mineral beneficiation plants. We can offer you a free design and completed solutions according to your project.
Baichy Heavy Industry has grown into a high-tech mining equipment comprehensive enterprise, integrating R&D, manufacturing, sales, and after-sales service, Passing ISO9001:2015 quality management system certifications. The main products are mobile jaw crushing plants, construction waste crushing plants, PE jaw crushers, VSI sand-making machines, Symons cone crushers, single-cylinder hydraulic cone crushers, PCX high-fine crushers, grinding mills, ball mills, and full sets of beneficiation equipment with an excellent level.
