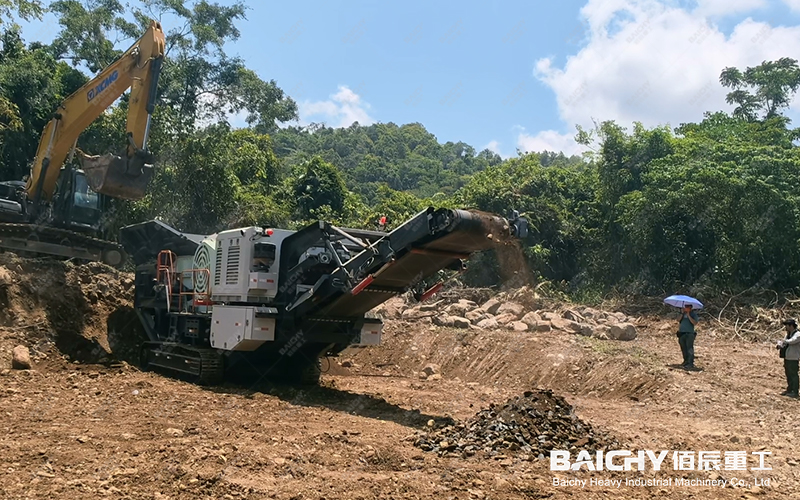

Small mobile limestone crusher is mainly composed of main frame, crushing system, vibrating feeding system, conveying and screening system, etc.
1. Main frame: It is the connector of several equipments, which is equivalent to the vehicle-mounted body. It adopts the latest single chassis structure, which effectively integrates the crushing unit, vibrating feeding, conveying and screening, etc. It can be used with crawler chassis, hydraulic tire legs and other structures.

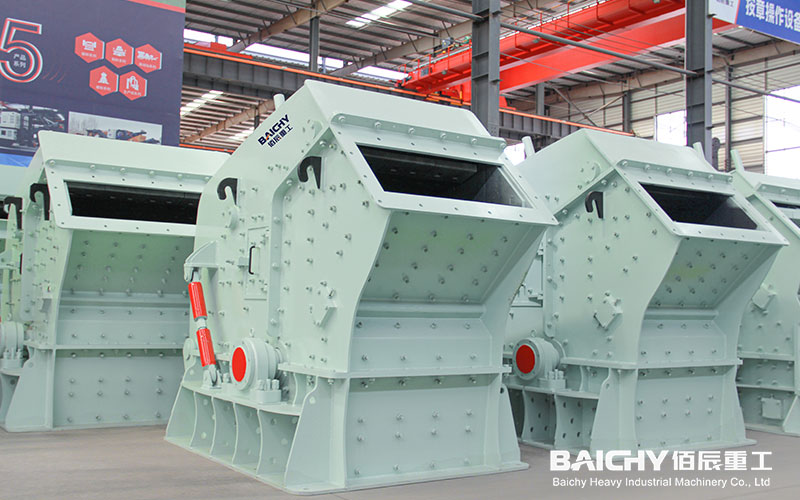

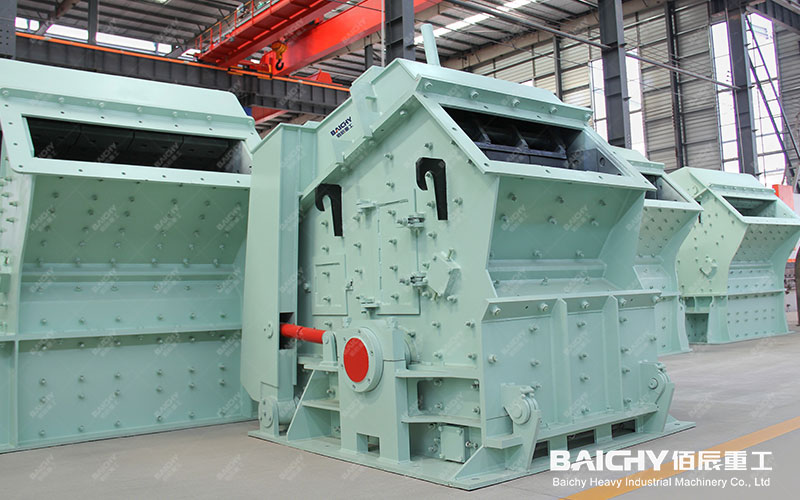

2. Crushing system: It is the most important structure in the vehicle-mounted mobile crusher, including different crushing equipment such as jaw crusher, impact crusher, hammer crusher, etc. The specific choice should be determined according to actual needs.
3. Vibrating feeding system: It can feed block and granular materials from the mining site to the receiving device evenly and continuously.

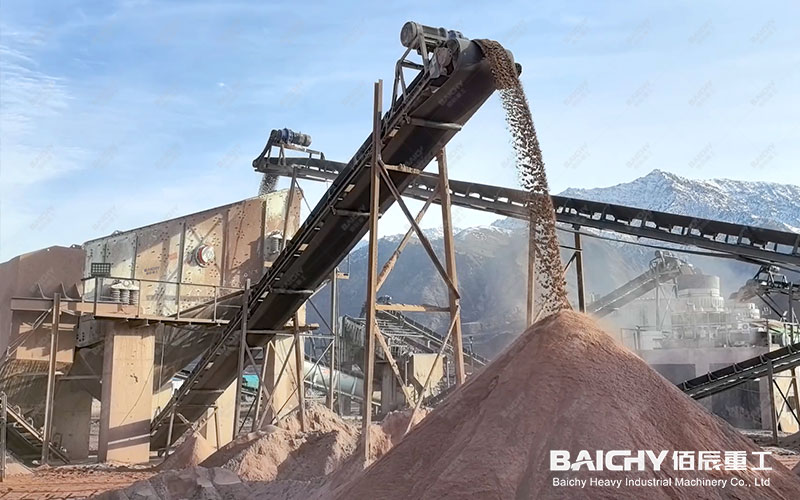

4. Conveying and screening system: It includes belt conveyor and circular vibrating screen. Belt conveyor is used to convey loose materials or finished items. It can be conveyed individually or multiple units can form a horizontal or inclined conveying system according to the conveying process requirements. Circular vibrating screen is a multi-layer, high-efficiency new type of vibrating screen used to screen out materials of different particle sizes.
