Project: 200t/h granite and basalt mobile crushing plant

Project requirements: Finished products 0-5mm, 5-10mm, 10-20mm, 20-31.5mm
Project address: China

About the hardness of granite and basalt

• The hardness index of granite is usually 6-7 (Mohs hardness scale). It is a plutonic rock composed of minerals such as feldspar, quartz, and mica. It has a fine structure, high compressive strength, low water absorption, high surface hardness, good chemical stability, and strong durability.

• The hardness index of basalt is generally 5-6 (Mohs hardness). It is a volcanic rock composed mainly of minerals such as pyroxene and olivine. Its hardness is relatively low, but it has excellent wear resistance, pressure resistance, corrosion resistance, and impact resistance.

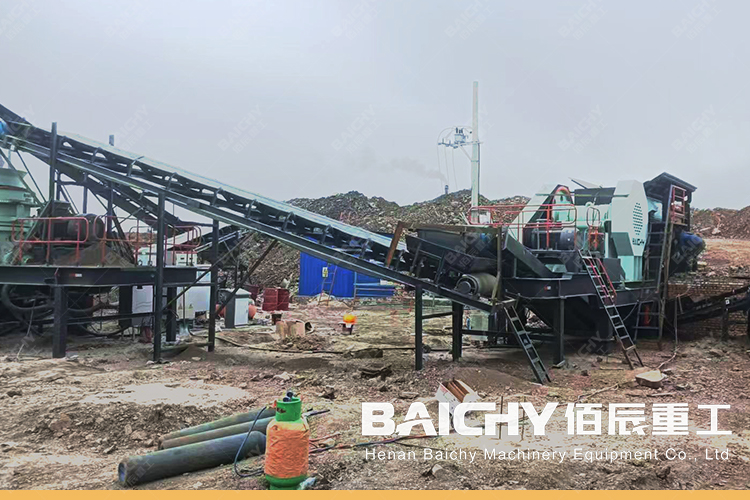

200tph mobile crushing plant - mobile jaw crusher.jpg

Mobile Jaw Crusher plant with PE 750x1060 Jaw Crusher


PE 750x1060 is a specific model of jaw crusher with an inlet size of 750x1060mm. It is usually used for coarse crushing to break large materials into smaller particles, and the mobile frame constitutes mobile jaw crusher for Mining operations.

Mobile jaw crusher is a mobile equipment that can directly perform crushing operations on site. It usually includes the main body of the crusher, feeding system, conveying system, power system, control system, and other parts, and can be moved to different working sites for crushing operations as needed.

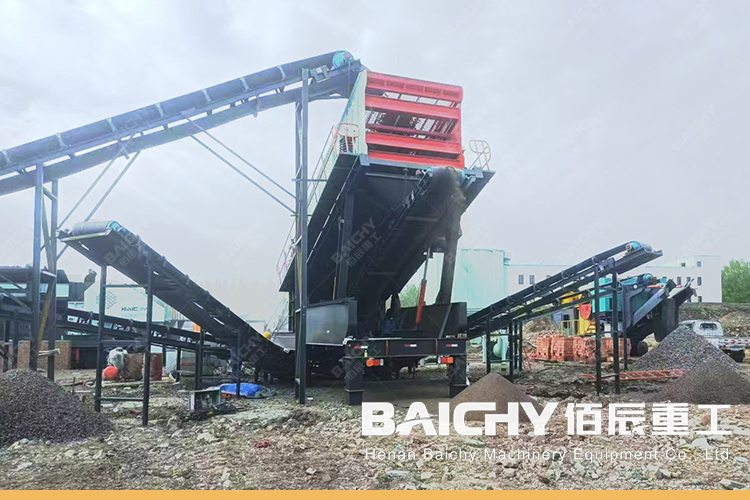

200tph mobile crushing plant - mobile cone and screening.jpg



Mobile cone and screening plant with HP300 Cone Crusher


Mobile cone and screening plant with an HP300 cone crusher are usually highly integrated, mobile, and flexible crushing and screening systems. This equipment combines the high-efficiency crushing capacity of the HP300 cone crusher with the screening function of the screening equipment, and can directly perform crushing and screening operations on site.

HP300 cone crusher is a multi-cylinder hydraulic cone crusher with a large production capacity and can process a variety of materials such as river pebbles, limestone, and granite. The feed particle size generally does not exceed 233mm, and the discharge range can be adjusted according to needs. It is suitable for many fields such as metallurgy, mining, construction, transportation, and chemical industry.

The mobile cone and screening equipment integrates the HP300 cone crusher with screening equipment such as vibrating screens to form a complete crushing and screening system. This equipment can be moved and laid out according to the actual conditions of the work site, improving work flexibility and efficiency. At the same time, its high degree of automation can reduce manual operations, reduce labor intensity, and improve production safety.
