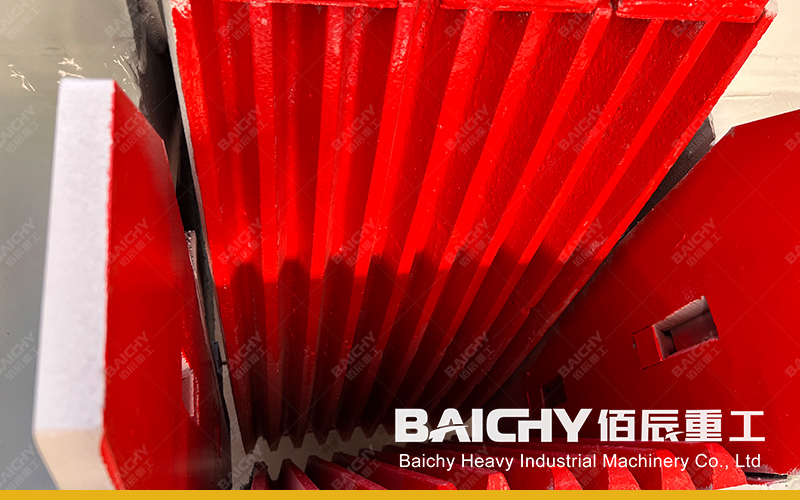

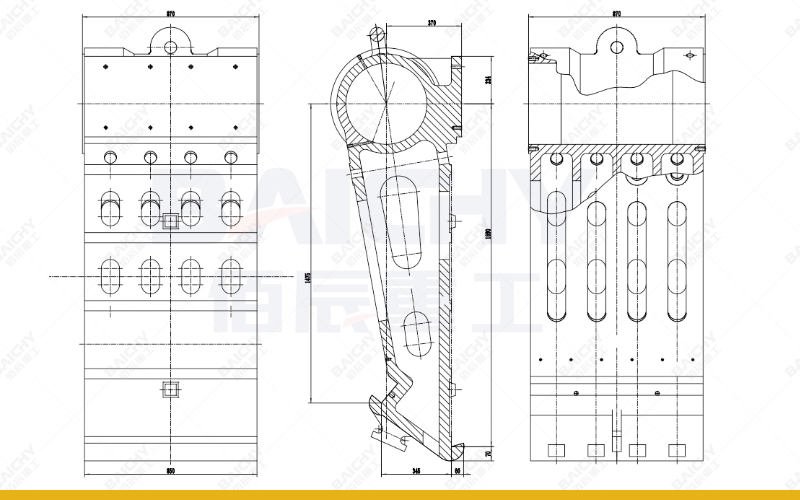

Moving jaw plate: also known as the movable jaw plate or movable jaw, is one of the main working parts of the jaw crusher. When working, it makes periodic reciprocating motion relative to the fixed jaw plate, sometimes approaching the fixed jaw plate and sometimes separating, so as to squeeze and crush the material. The movable jaw plate is usually made of high-strength and wear-resistant materials, such as high manganese steel, to withstand the huge impact and wear during the crushing process.







Fixed jaw plate: also known as fixed jaw plate or static jaw, remains relatively still during the crushing process. It forms a crushing cavity with a movable jaw plate to crush the material entering the cavity. The fixed jaw plate also needs to be made of wear-resistant materials to ensure long-term stability and reliability.

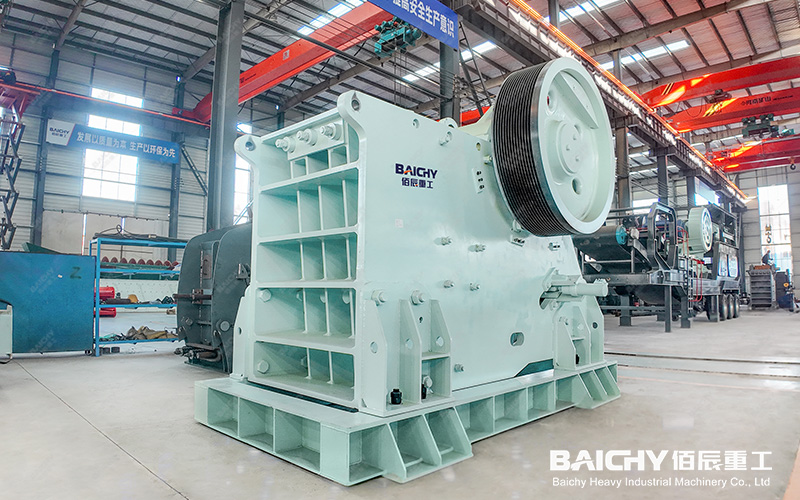

The feed port size of the jaw crusher PE600x900 is 600×900mm, the feed size is 0-500mm, and the discharge size is 65-160mm; production capacity: depending on the hardness of the material and the performance of the equipment, the output range is between 60 and 200 tons per hour, and the specific value may vary depending on the actual working conditions. Some data show that its output is 90-180 tons per hour, and some data show that its processing capacity is 70-120t/h, that is, if the working hours are calculated as 10 hours per day, the daily output can reach 700-1200 tons.





To ensure the normal operation of the crusher and extend its service life, it is necessary to use high-quality wear-resistant materials to make the movable and fixed jaw plates and conduct regular inspections and maintenance during use.
