1-2microns Granite Powder Grinding Mill Equipment YGM130 Raymond Grinder Mill With PE250x400 Jaw Crusher In Uzbekistan

2024-10-11 14:33:52
Baichy
plays
Warm Tip:

If you want to know more details about equipment, solutions, etc, please click the button below for free consultation, or leave your requirements!




YGM130 Raymond mill is an efficient, energy-saving and reliable grinding equipment, which is widely used in many fields; it is especially suitable for the powder processing of non-flammable and explosive materials with Mohs hardness not more than 9.3 and humidity below 6% such as barite, calcite, potassium feldspar, talc, marble, limestone, ceramics, glass, etc.



Technical Parameters

Capacity 4-7tph
Raymond Mill Model YGM130
Main Grinder 90
Blower 90
Classifier 7.5
Jaw Crusher Model PE250x400
Motor 15
Bucket Elevator Model T250x10m
Motor 4
Feeder Model GZG-4
Motor 0.15
Silo Customized according to actual situatior

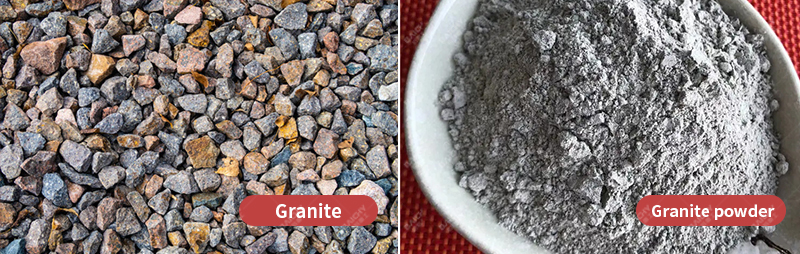

Introduction to granite



Granite is a crystalline rock composed of minerals such as feldspar, quartz and mica. It has unique physical and chemical properties and therefore has a wide range of application value in many fields.



Granite is processed into fine powder to meet the demand for granite powder in different fields.



Inert stone powder: added to concrete to change its working performance and improve the strength and durability of concrete.



Glass batch: glass batch is prepared with limestone, sodium carbonate, sodium sulfate, carbon and zinc oxide to prepare columnar-wollastonite microcrystalline glass, which is used in building decoration materials.

Ceramic raw materials: Use granite solid waste sawdust and stone powder to prepare ceramic raw materials, solve the industry problem of stone sawdust polluting the environment and wasting resources, and use renewable resources to replace primary ore to solve the problem of raw material supply in the ceramic industry.

Other applications: Replace fly ash for mineral powder production, manufacture of artificial stone, etc.

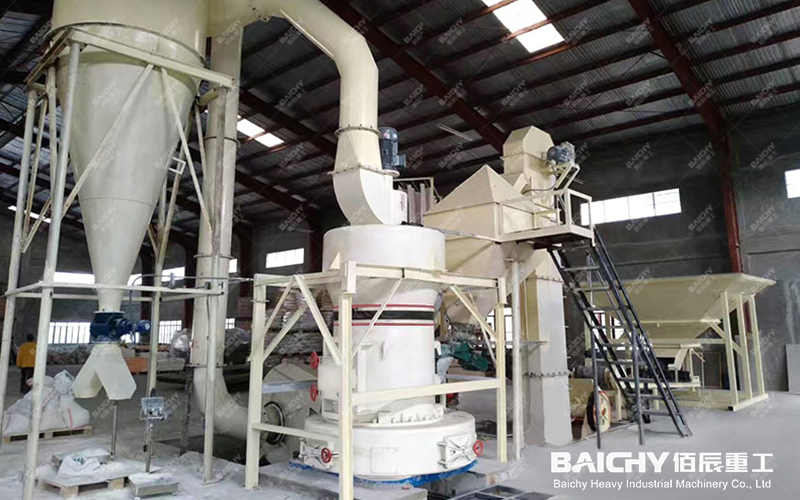

YGM130 Raymond mill technical specifications:



Processing capacity: 3-9.5t/h

Feed particle size: ≤35mm

Discharge fineness: 10-425 mesh (0.95-0.033mm). By adjusting the analyzer speed, finer particle size requirements can be achieved, but whether it can reach 1-2 microns depends on the material characteristics and equipment adjustment.

Applicable materials: granite (must meet non-flammable and explosive conditions), limestone, bentonite, calcite, bauxite, etc.

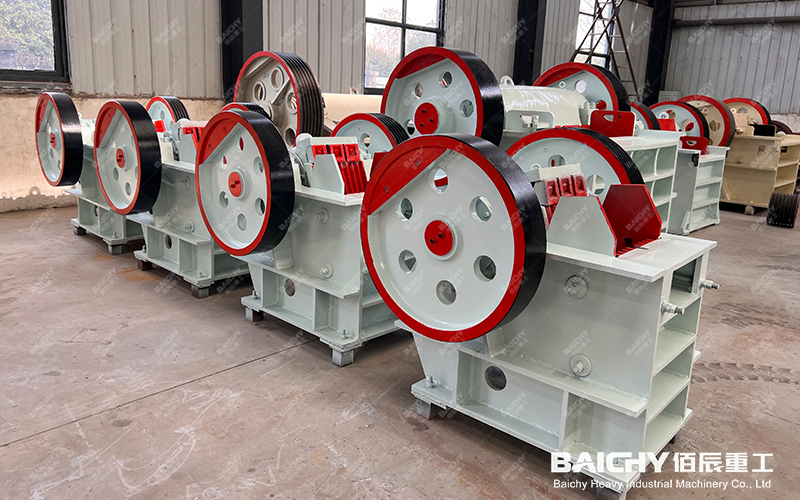

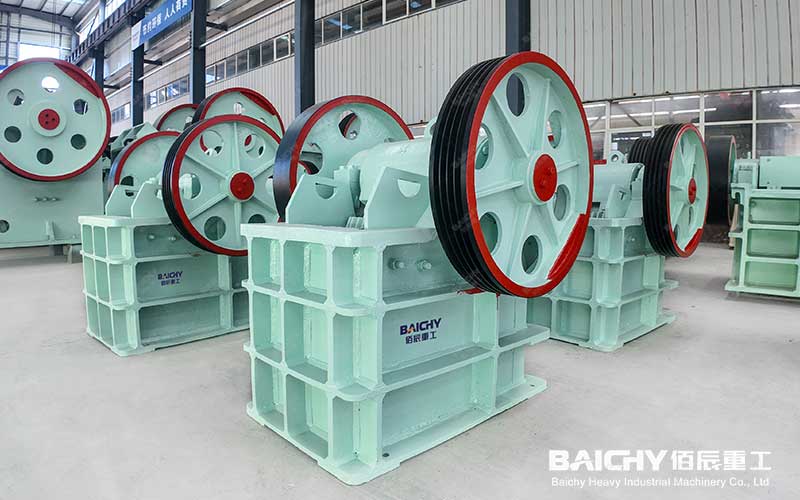

PE250x400 jaw crusher technical specifications:



Feed port size: 250x400mm

Processing capacity: Depends on the hardness of the material and the crushing requirements, generally suitable for small and medium-sized crushing operations.

Applicable materials: granite, limestone, river pebbles, iron ore and other ores and rocks.

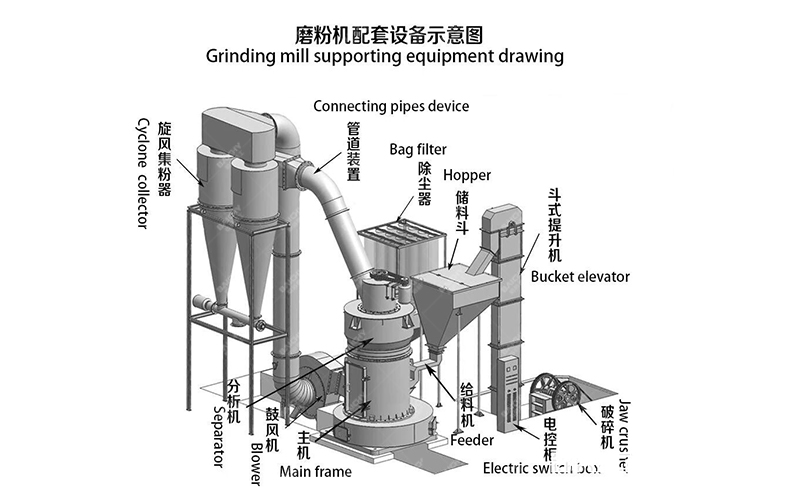

Granite grinding process



1. Large pieces of granite and other raw materials are first crushed by PE250x400 jaw crusher to a particle size suitable for grinding mill.



2. The crushed materials are sent to the silo by bucket elevator or other conveying equipment.



3. The materials in the silo are evenly and quantitatively fed into the main grinding chamber of YGM grinding mill by electromagnetic vibration feeder or other feeding equipment.



4. In the main grinding chamber, the grinding roller and grinding ring grind the materials. The grinding roller assembly is suspended on the grinding roller hanger through the cross arm shaft, and the grinding roller hanger is fixedly connected to the main shaft and the scraper frame. When the motor drives the main shaft to rotate through the transmission device, the scraper mounted on the scraper frame rotates synchronously with the grinding roller, and the grinding roller rolls on the inner circle of the grinding ring while rotating around its own axis, thereby grinding the material into fine powder.



Perfect after-sales service



Baichy Heavy Industry provides professional on-site guidance for installation, training of workers, and other services to ensure that customers can use the equipment smoothly.



The company has a complete after-sales service system, which can provide customers with timely technical support and equipment maintenance services to ensure the long-term stable operation of the equipment.
