About vertical shaft impactor

2024-04-12 09:45:36
Baichy
plays
Warm Tip:

If you want to know more details about equipment, solutions, etc, please click the button below for free consultation, or leave your requirements!

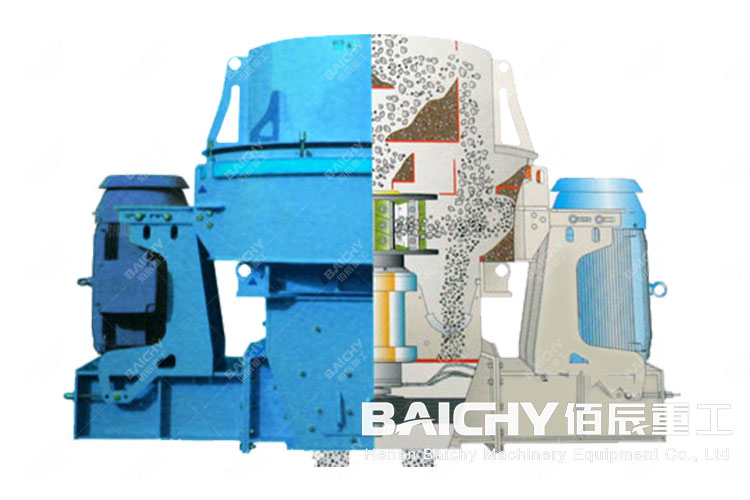

Internal structure of vertical shaft impactor



Vertical shaft impactor, also known as a vertical shaft impact crusher, is a device that uses vertical axial impact to break materials into small particles. It uses a motor to drive the rotor to rotate at high speed through a belt so that the material is subject to vertical axial impact and the reaction force of the counterattack plate to achieve rapid crushing. Under the action of high-speed impact force, the materials are continuously collided, rubbed, and ground, broken into small particles, and discharged through the sieve plate to meet the requirements of different particle sizes.

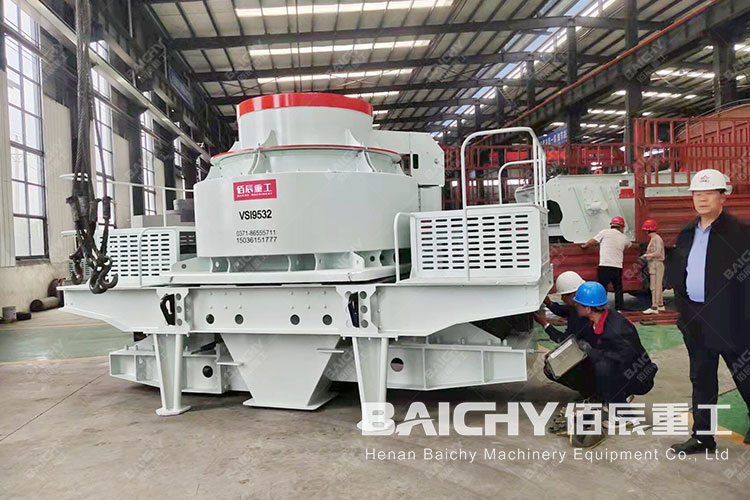

vertical shaft impactor

The vertical shaft impact crusher has some significant advantages, such as high crushing efficiency, complete discharge particle shape, multi-angle and edge, and good quality. In addition, the gap is adjustable, and users can adjust and control the particle size of finished products to achieve the production of a variety of finished product specifications. The equipment itself has good sealing performance, coupled with the principle of impact crushing, the operation produces less stone powder and is environmentally friendly. It has a simple structure and is easy to maintain. There is no significant unbalanced vibration during operation and no heavy foundation is required. It has a large feed opening, deep crushing cavity, large production capacity, low power consumption, and is suitable for a wide range of materials. The impact plate and blow hammer have strong wear resistance, giving them a long service life in practical applications.

Finished product particle size performance of vertical shaft impactor

Vertical shaft impact crushers are widely used in many fields, including artificial sand production of river pebbles, mountain rocks (limestone, granite, basalt, etc.), ore tailings, stone chips, construction aggregates, highway fabrics, cushion materials, asphalt Production of concrete and cement concrete aggregates, as well as machine-made sand production and stone shaping in the engineering fields of water conservancy and hydropower, high-grade highways, high-speed railways, bridges, airport runways, etc. In addition, it is also suitable for the pre-grinding fine crushing process in the mining field, material crushing in building materials, metallurgy, chemical industry, mining, refractory materials, cement, abrasives, and other industries, as well as highly abrasive and secondary disintegration crushing, thermal power and metallurgical industries. Sulfur removal, steel slag, construction waste crushing, and other environmental protection projects.

Vertical shaft impactor production line site

The vertical shaft impact crusher is an efficient, environmentally friendly, and multi-functional crushing equipment that is widely used in various material crushing and sand-making fields. For more information, it is recommended to consult the crusher manufacturer or consult relevant industry research reports.
