Application

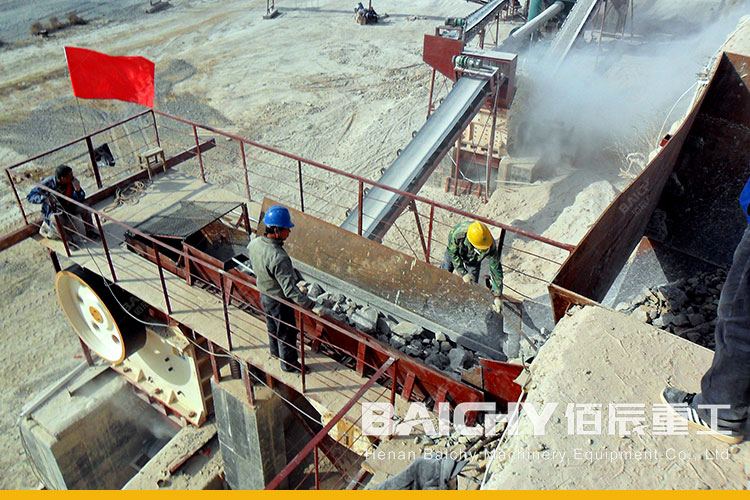

Feeding device before coarse, medium crushing process.

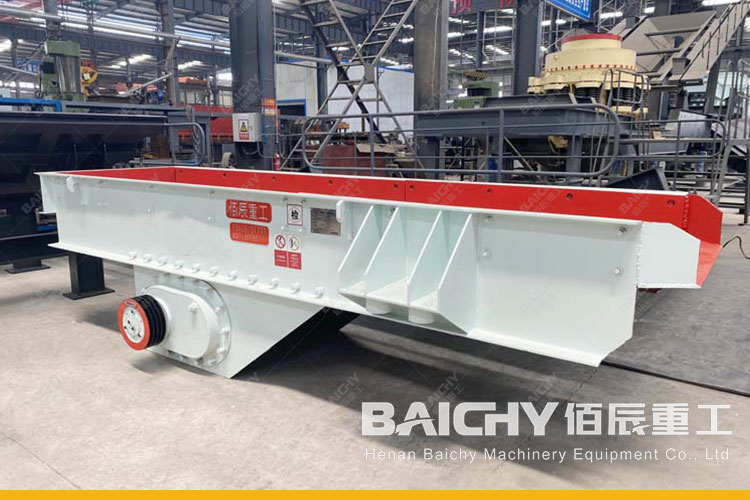

Vibrating feeder is used to transfer the block, particle materials from storage silo to receiving device evenly ,regularly and continuously, for avoid stuck or damage to crushers and prolong machinery lifetime. Baichy unique design vibrating feeder has plate structure and grids structure transformation functions, realize coarse sieving of materials if requires, so it is widely used to match with the crushing and sieving equipment in mining, chemical, grinding, building material, etc.
Specifications
- Model: ZSW 1100*4200
- Feeder Spout size: 1100*4200mm
- Max feeding size:580mm
- Capacity:200-430tph
- Motor power: 15kw
- Overall dimension (L*W*H): 4400*2050*1660mm
Features:
1. ZSW series vibrating feeder is eccentric shaft exciting source, motor with V-belt drive gear transmission, pressure springs vibrating, low noise, smooth operation, long life running.
2. Frame adopt Q235B steel plate, Side and bottom plate adopt manganese plates linear. 45# steel double eccentric shafts vibrator guarantee equipment enough vibrating force to drop big materials, large feeding capacity. The excitation force can be adjusted for control flow and feeding quantity.
3. Unique design dual functions, vibrating feeder front end plate can easily take off and transfer into grids type if need coarse
sieve.
4. Closed compact structure prevents dust pollution.

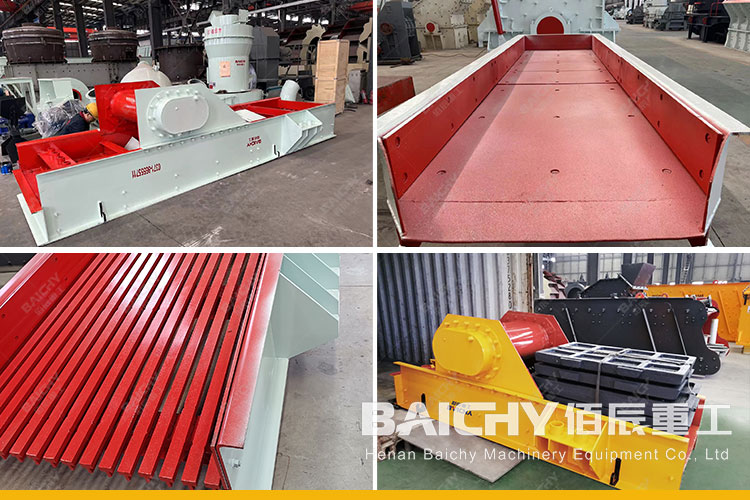

Processing details
