Mobile impact crushers are used for crushing soft or medium-hard rocks and recycling concrete. They are mainly used for stone crushing and processing in highways, railways, hydropower projects, etc.
Of course, customers can also use a variety of configurations according to their own needs, the characteristics of raw materials, output requirements, and finished product size requirements, including jaw crushers, impact crushers, cone crushers, sand-making machines, and other main equipment configurations. Wheeled mobile impact crushers are particularly suitable for the secondary crushing stage of sand and gravel aggregates.
Unlike other mobile crushing and screening plants, the Baichy mobile impact crusher is used for coarse and secondary crushing of sand and gravel aggregates in Saudi Arabia. It consists of a vibrating feeder, a PF impact crusher, a belt conveyor, and a wheeled frame.

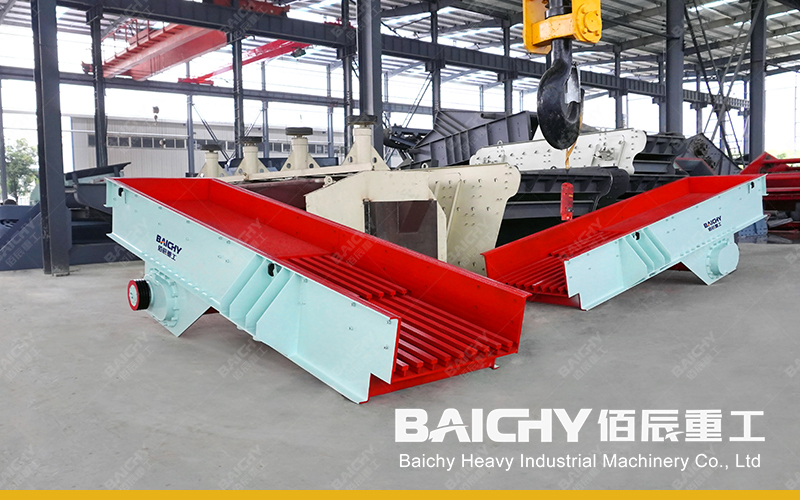

1. Vibrating feeder ZSW1142
The
vibrating feeder is mainly used for uniform feeding. After vibration, the material moves forward and slowly enters the front of the impact crusher. The crushed stone particles are small and fall into the gaps between the grilles, which plays a screening role.

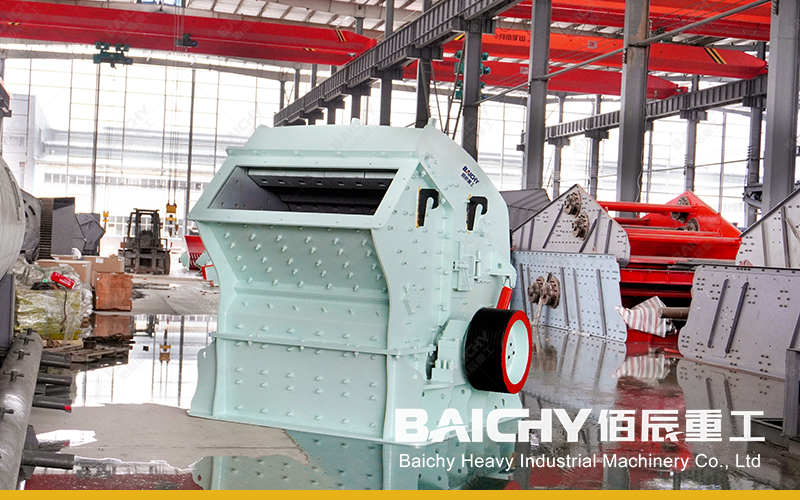

2. Impact Crusher PF1315
The
impact crusher has the advantages of a large crushing ratio and cubic particles after crushing. It is mainly used for medium and fine crushing of materials, adjustable discharging particle size, and diversified crushing specifications.
3. Vehicle-mounted belt conveyor B800
The belt conveyor is mainly used for material transportation. The crushed materials of the impact crusher can be directly transported to the truck, which is convenient and fast, saving time.

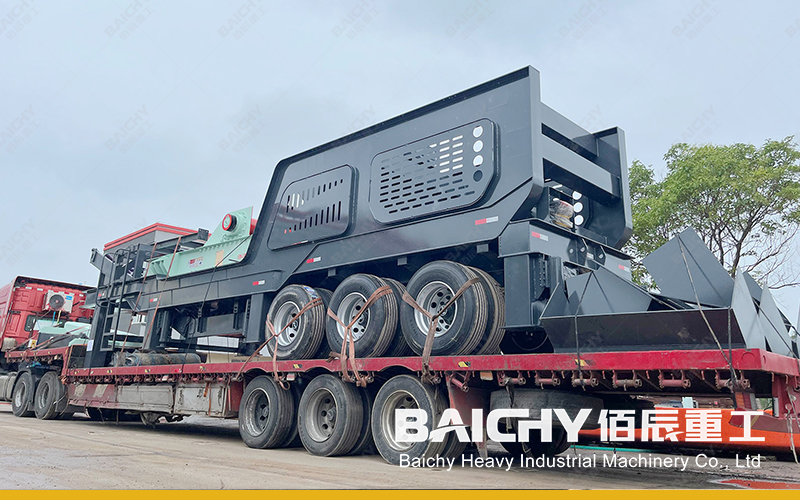

4. The tire-type walking frame is convenient to move on ordinary roads, with a small turning radius, and can be quickly stationed on the construction site. The equipment is highly flexible and saves time.
Baichy Machinery is a factory supplier of mining machinery, mainly focusing on stone crushers, powder grinding mills, and mineral beneficiation plants. We can offer you a free design and completed solutions according to your project.
Baichy Heavy Industry has grown into a high-tech mining equipment comprehensive enterprise, integrating R&D, manufacturing, sales, and after-sales service, Passing ISO9001:2015 quality management system certifications. The main products are mobile jaw crushing plants, construction waste crushing plants, PE jaw crushers, VSI sand-making machines, Symons cone crushers, single-cylinder hydraulic cone crushers, PCX high-fine crushers, grinding mills, ball mills, and full sets of beneficiation equipment with an excellent level.
