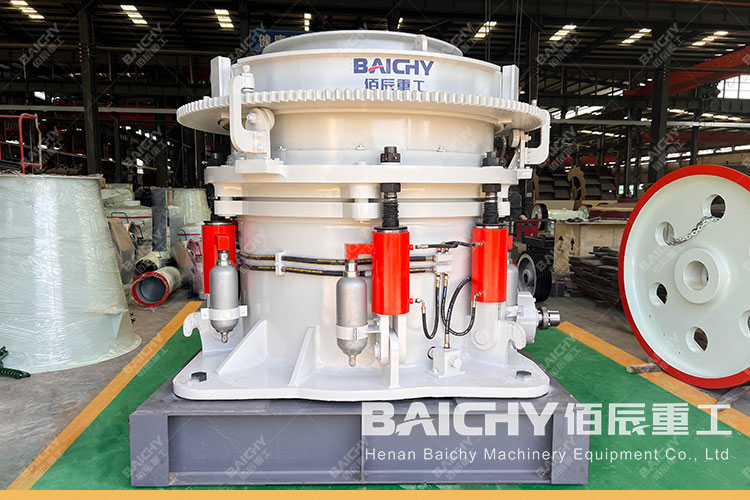

The moving cone of the HPC300 hydraulic cone crusher performs a swing motion driven by the eccentric sleeve. The material is squeezed and rolled in the crushing cavity between the crushing wall and the rolling mortar wall and is subjected to multi-directional forces. The force breaks and polishes according to its texture to form stable stone particles. Materials that meet the discharging requirements will fall and be discharged from the swing gap of the crushing wall, and the remaining materials will continue to be crushed until they meet the final requirements.

• This equipment adopts a fixed main shaft and a small spherical bearing structure. The crushing stroke, crushing speed, and crushing cavity type are reasonably combined. The crushing efficiency is high and the production capacity is improved compared with traditional cone crushers.



• It has an optimized cavity design and a reasonable combination of speed and stroke, which ensures stable and reliable performance of the equipment, increases production capacity, and reduces production costs.



•  The HPC300 hydraulic cone crusher adopts the laminated crushing principle, resulting in more cubic products with uniform particle size and reasonable gradation, thus improving the quality of the product.



• The equipment also has a variety of crushing cavity types, which can adapt to different product particle size requirements, with high flexibility and strong adaptability.



• In terms of operational safety, the large-diameter spindle and heavy-duty main frame ensure the equipment is durable and reliable in operation. The independent thin oil lubrication system with multi-point control ensures double protection of bearing lubrication. In addition, the iron overload protection device and automatic control system can realize automatic safety protection.

The HPC300 hydraulic cone crusher is widely used in mining, metallurgy, building materials, chemicals, ceramics, and other industries. It can crush basalt, andesite, diabase, cobblestone, quartz stone, wollastonite, granite, gold ore, and iron Medium and fine crushing operations are carried out for materials with medium or higher hardness such as ores.



HPC300 hydraulic cone crusher has received widespread attention and recognition in China and even the global market due to its excellent performance and wide range of application fields.
