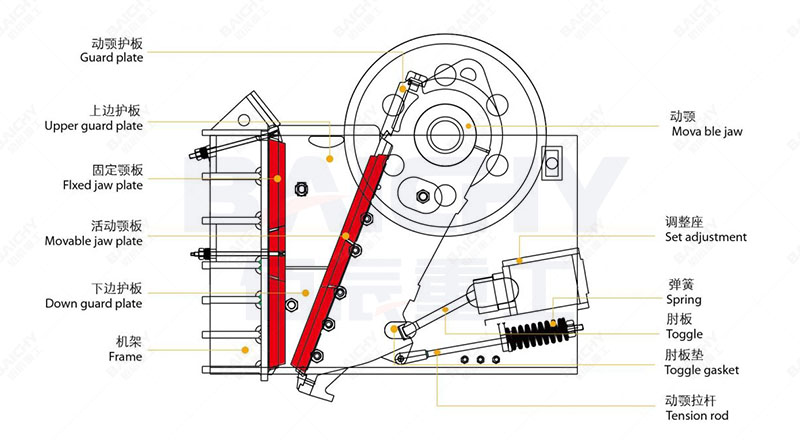

Structural composition of jaw crusher
The structure of
jaw crusher mainly consists of frame, eccentric shaft, large pulley, flywheel, movable jaw, side guard plate, toggle plate, toggle plate back seat, gap adjustment screw, reset spring, fixed jaw plate and movable jaw plate. Among them, the toggle plate also plays a role of insurance. When the equipment is subjected to excessive pressure, the toggle plate will break first, thus protecting other parts from damage.
Jaw crusher types and specifications
Jaw crushers can be divided into many types according to their structures and working principles. Among them, the most commonly used ones are double toggle plates and single toggle plates. The former has a simple arc swing when the movable jaw is working, so it is also called a simple swing jaw crusher; the latter also moves up and down while making an arc swing. In addition, according to the width of the feed port, it can be divided into three types: large, medium and small. The feed port width is greater than 600MM for large machines, the feed port width is 300~600MM for medium machines, and the feed port width is less than 300MM for small machines.
Application fields of jaw crusher
Jaw crusher is widely used in many industries such as mining and smelting, building materials, highways, railways, water conservancy and chemical industry. It is mainly used for medium-sized crushing of various ores and bulk materials, and can crush materials with compressive strength not more than 320Mpa. It is one of the indispensable equipment in these industries, especially playing an important role in the primary crushing stage.
Performance characteristics of jaw crusher
1. Deep crushing chamber without dead zone: improves feeding capacity and output.
2. Large crushing ratio: uniform product particle size, able to meet the needs of different users.
3. Gasket-type discharge port adjustment device: reliable and convenient, with a large adjustment range, increasing the flexibility of the equipment.
4. Simple structure: reliable operation and low operating costs.
5. Equipment energy saving: single machine energy saving 15%~30%, system energy saving more than doubled.
6. Low noise and less dust: beneficial to environmental protection and the health of workers
Perfect after-sales service
Baichy Heavy Industry provides professional on-site guidance for installation, training of workers, and other services to ensure that customers can use the equipment smoothly.
The company has a complete after-sales service system, which can provide customers with timely technical support and equipment maintenance services to ensure the long-term stable operation of the equipment.
