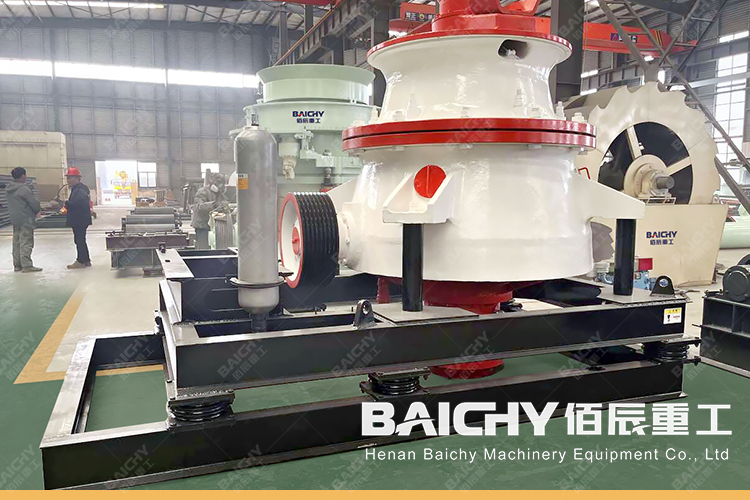

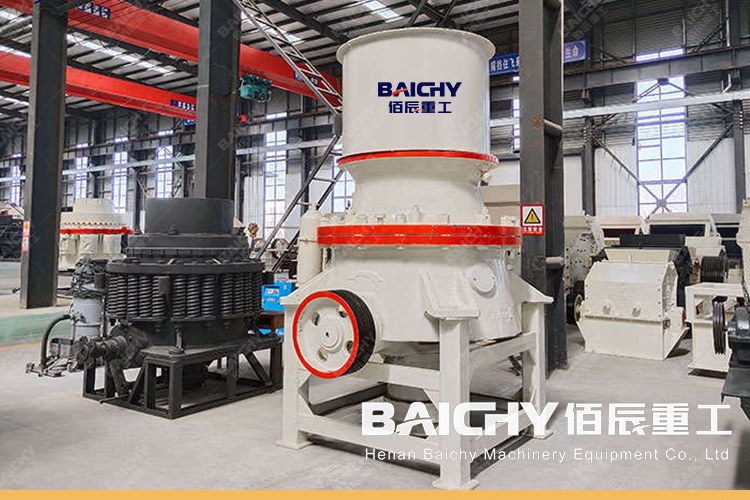

The single-cylinder hydraulic cone crusher is an efficient and reliable crushing equipment, which is widely used in mining, construction, metallurgy, and other industries. The following is a detailed introduction to the single-cylinder hydraulic cone crusher, including its structure, working principle, performance characteristics, and application fields:
1. Structure and composition
The single-cylinder hydraulic cone crusher is mainly composed of a frame, a transmission device, an eccentric sleeve, a main shaft, a crushing wall, a rolling mortar wall, a hydraulic system, a lubrication system, and other parts. Among them, the hydraulic system is the key part of the equipment, which is responsible for providing the power required in the crushing process.
2. Working principle
The working principle of the single-cylinder hydraulic cone crusher is to drive the transmission device through an electric motor so that the eccentric sleeve drives the main shaft to rotate. The crushing wall on the main shaft then performs periodic swinging motion in the rolling mortar wall, so that the material is crushed by squeezing, grinding, and shearing in the crushing chamber. At the same time, the hydraulic system can adjust the gap between the crushing wall and the rolling mortar wall according to the crushing needs to achieve different crushing effects.
3. Performance characteristics
• Simple structure, and easy maintenance: hydraulic adjustment and hydraulic protection are adopted, and the complex components of traditional cone crushers are omitted, making the machine structure simpler and more compact, and maintenance is convenient and quick.
• Laminated crushing, good finished product particle shape: adopting the principle of laminated crushing, the products after crushing are mostly cubic structures, which reduces needle-like materials, makes the particle size more uniform, and improves the production quality.
• Large production capacity: combined with factors such as crushing stroke, speed, and cavity type, the output of a single-cylinder hydraulic cone crusher is 35%-60% higher than that of a traditional cone crusher under the same conditions.
• Multiple cavity types are selected to meet various particle size requirements: using a variety of crushing cavity types, the eccentricity can be changed by replacing the eccentric sleeve to meet the needs of different crushing materials.
• Long service life: the upper and lower parts of the main shaft are supported by bearings, which improve the stress of the main shaft. At the same time, the thin oil lubrication technology is adopted to greatly improve the service life of the equipment.
• Intelligent control: equipped with PLC and touch screen control mode to realize automatic control and remote operation, and convenient real-time monitoring of core parameters such as temperature, pressure, and current.
4. Application fields
Single-cylinder hydraulic cone crusher is suitable for medium and fine crushing of various industries and materials, such as metal and non-metallic ores, building materials, transportation construction, metallurgy, water conservancy, etc. It can effectively crush materials with medium or above hardness such as iron ore, non-ferrous metal ores, granite, limestone, quartzite, sandstone, river pebbles, etc.
5. Summary
Single-cylinder hydraulic cone crushers have been widely used in mining, construction, metallurgy, and other industries due to their high efficiency, reliability, and intelligence. Its simple structure, easy maintenance, large production capacity and strong adaptability make it an ideal choice in the crushing field.
