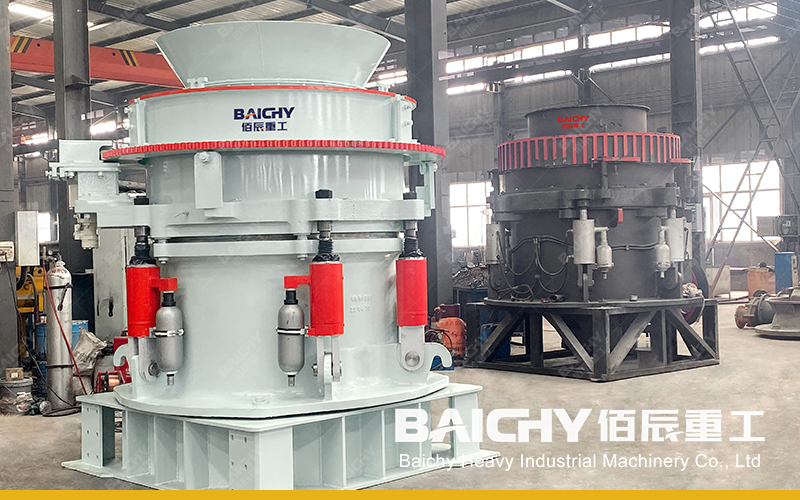

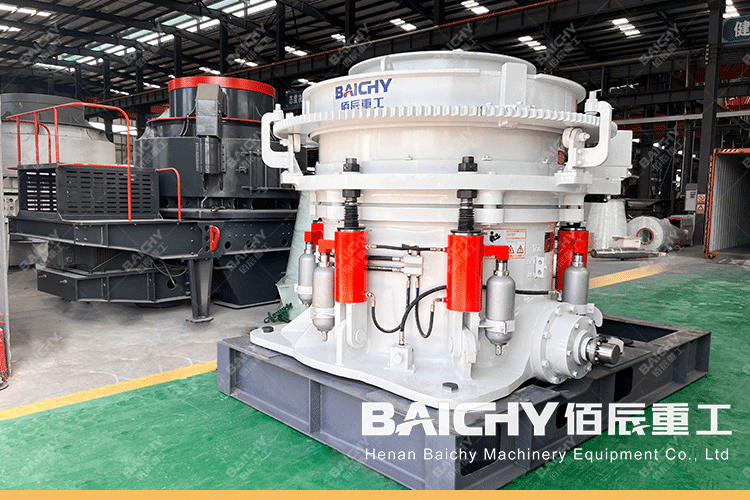

Multi-cylinder hydraulic cone crusher is a high-efficiency crushing equipment for medium and fine crushing of hard materials.
1. Multi-cylinder hydraulic cone crusher equipment structure
• Main components: Multi-cylinder hydraulic cone crusher is mainly composed of fixed cone, moving cone, eccentric sleeve, transmission, frame, adjustment ring, feed bin, discharge port adjustment, locking protection cylinder, fan, motor, hydraulic station, lubrication station and special tool.
• Features: Compared with spring cone crusher, multi-cylinder hydraulic cone crusher uses multiple sets of hydraulic cylinders instead of springs, making the structure more complex but more powerful.
2. Working principle of multi-cylinder hydraulic cone crusher
• Crushing process: During operation, the moving cone makes a swinging motion along the inner surface. The material is crushed by the squeezing and bending of the moving cone near the fixed cone. In places away from the moving cone, the crushed material falls from the bottom of the cone due to gravity. The entire crushing and unloading process is carried out continuously along the inner surface.
• Hydraulic system: The hydraulic system controls the flow of hydraulic oil to realize the operation of the cone crusher, including providing power, adjusting the size and particle size of the crushing chamber, etc.
3. Model specifications of multi-cylinder hydraulic cone crusher
• Common models: such as HPC300, HPC400, HPC500, etc., different models have different feed port sizes, discharge port sizes and processing capacities.
• Specification parameters: Taking HPC300 as an example, the feed port size is 20-75mm, the discharge port size is 6-10mm, and the processing capacity is 110-380t/h.

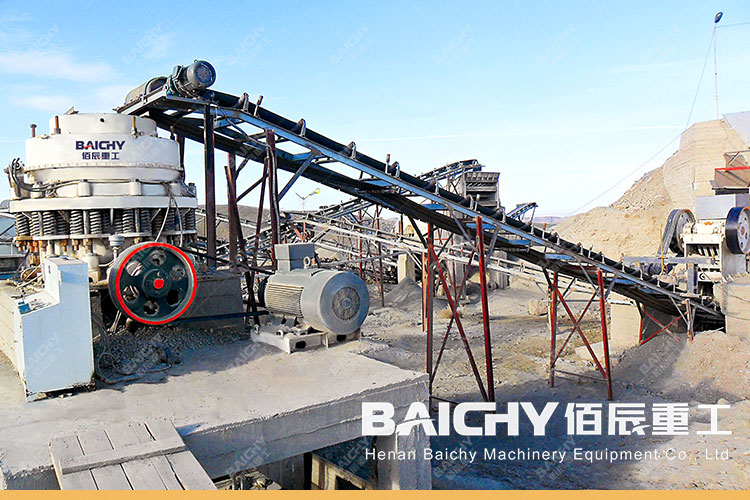

4. Application scenarios of multi-cylinder hydraulic cone crusher
• Industry application: Multi-cylinder hydraulic cone crushers are widely used in mining, metallurgy, construction, chemical industry, electric power, transportation and other industries.
• Material range: Especially suitable for the crushing of medium-hardness ores such as granite, limestone, river pebbles, basalt, etc.
5. Features and Advantages
• High efficiency: large crushing ratio, low energy consumption, uniform output particle size, and low dust pollution.
• Easy adjustment: The size of the discharge port and the size of the crushing chamber can be easily adjusted through the hydraulic system.
• Iron protection: The iron protection device with multiple sets of hydraulic cylinders can effectively protect the equipment from damage by non-crushed objects.
6. Selection suggestions
When choosing a multi-cylinder hydraulic cone crusher, you should choose the appropriate model and specifications according to specific needs, such as material hardness, particle size requirements, and processing capacity.
At the same time, you should also consider factors such as the brand, quality, and after-sales service of the equipment to ensure that you purchase equipment with stable performance and reliable use.
