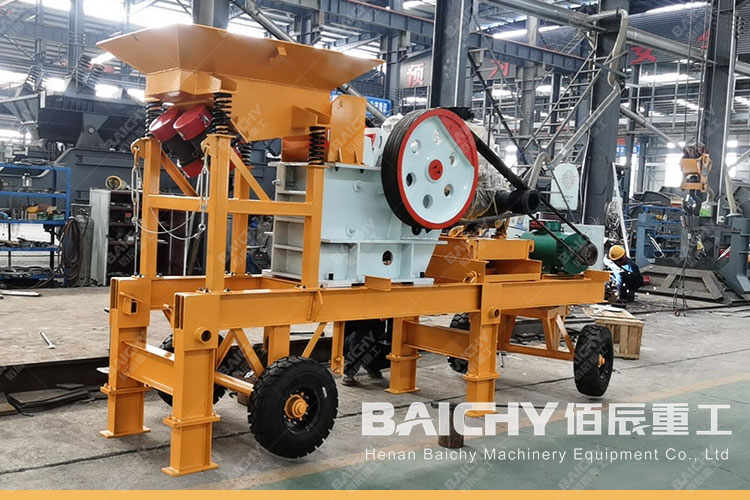

PE250x400 portable jaw crusher is a kind of mobile crushing equipment, usually used to process materials of various hardness, such as rocks, ores, etc. The following are some main features and parameters of the PE250x400 jaw crusher plant:
• Inlet width: 250mm
• Feed particle size range: within 210mm, suitable for crushing medium hard materials.
• Discharging particle size range: 20-60mm, which can be adjusted as needed.
• Processing capacity: 5-20t/h, the amount of materials that can be processed per hour can be adjusted as needed.
• Motor power: 15kw, which can meet the crushing requirements of the equipment.
• Weight: Approximately 2.8 tons, specific weight may vary by manufacturer and configuration.
The main advantages of the PE250x400 portable jaw crusher are its mobility and flexibility. Since it is mobile, it can be easily moved to different workplaces to adapt to various crushing needs. In addition, it also has the characteristics of a simple structure, convenient operation, and low maintenance cost.
It should be noted that PE250x400 portable jaw crusher plants produced by different manufacturers may have differences in performance, price, configuration, etc. Therefore, when purchasing, you need to choose the right equipment based on your specific needs and budget. At the same time, it is also necessary to pay attention to issues such as equipment quality and after-sales service to ensure the normal operation and service life of the equipment.

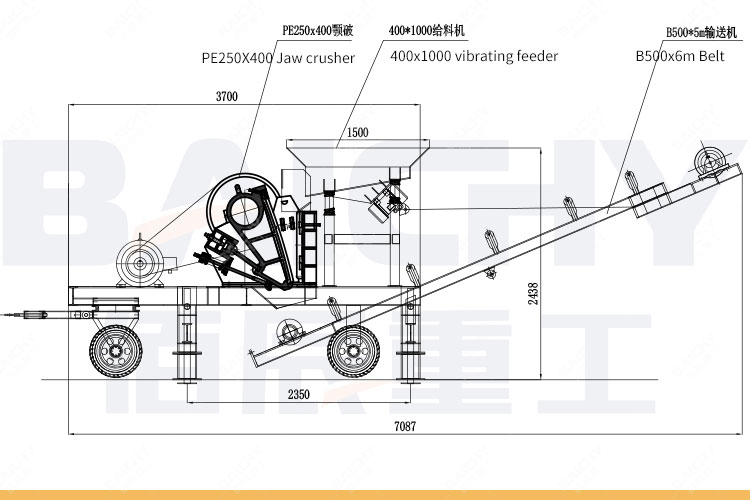

Technical Parameters of PE250x400 portable jaw crusher plants
| Capacity | 5-20tph |
|---|---|
| Vibrating feeder 1 set | GZ40-4 (400x1000) Max feeding size 500mm Capacity 5-30tph |
| Jaw crusher 1 set | PE250x400 Max feeding size 210mm Discharge size 40-60mm Capacity 5-10tph |
| Conveyor Belt 1 set | B500x6m Belt width 500mm Belt length 6m Transport capacity 30tph |
| Stand and frame 1 set | 2 axis, manual support legs |
| Power system 1 set | Diesel engine 30kw 1. Connected with belt wheel for jaw crusher 2. Supply power to feeder and belt 3. Diesel tank 30-40L 4. Diesel consumption 7-8L/h |
| EXW PRICE USD | 13,500 |
| Transport dimension mm | 6.35*2.2*2.8m |
| Loading condition | 1x20ft container |
