Spring cone crusher is an efficient and high-power crushing equipment, mainly used to crush ores and rocks of various hardness, such as iron ore, copper ore, limestone, quartz, granite, etc. Its design is based on absorbing the international advanced levels of various types of cone crushers from various countries in the 1980s and focuses on the main advantages of various cone crushers. It is especially suitable for fine crushing and ultra-fine crushing of hard rocks, ores, slag, and refractory materials. Materials etc.

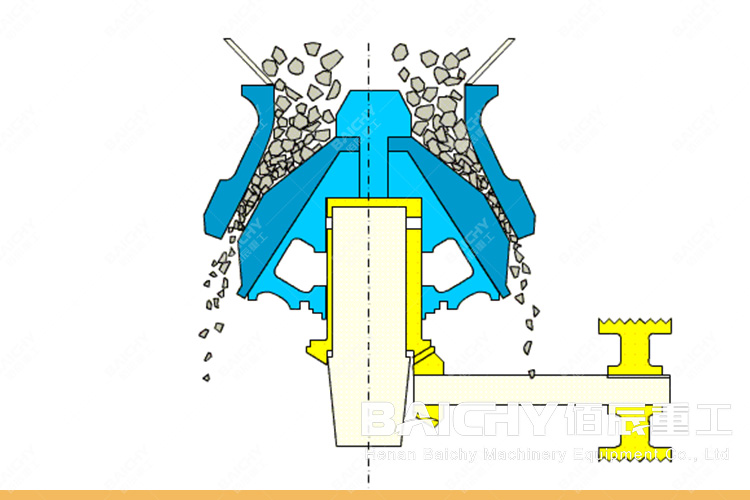

Working principle of PYB 900 cone crusher
PYB 900 spring cone crusher uses the working surface between the movable cone and the fixed cone to crush ore. The moving cone is supported on spherical bearings and fixed on a suspended vertical shaft, which is placed in an eccentric sleeve. When the eccentric sleeve rotates, the movable cone makes a swing motion driven by the vertical axis, thereby approaching or leaving the fixed cone. When the moving cone approaches the stationary cone, the ore is crushed.
Structural features of PYB 900 cone crusher
The equipment casing consists of upper and lower parts, connected by bolts. There are strong springs on the bolts. When metal or other hard objects fall into the crushing chamber, the springs can protect key components such as the main shaft of the crusher from damage. If a metal block or other hard object enters the crushing chamber together with the ore, the immovable cone is lifted and the ore discharge port is enlarged to discharge it.
Performance parameters of PYB 900 cone crusher
PYB 900 spring cone crusher has a large crushing capacity and high crushing efficiency. Its output range is generally between 50-90 tons/hour, the diameter of the moving cone is 900 mm, and the spindle speed is 333 rpm. In addition, the equipment also has parameters such as the adjustable size of the discharge port (15-50 mm) and the size of the ore feeding port (closed side/open side 115 mm), which can be adjusted according to actual needs.

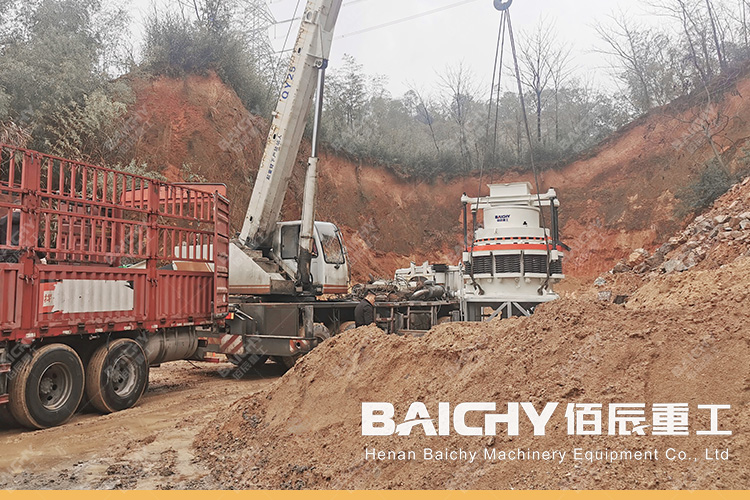

Application fields of PYB 900 cone crusher
PYB 900 spring cone crusher is widely used in mining, metallurgy, construction, chemical industry, and other fields to crush ores and rocks of various hardness, such as iron ore, copper ore, gold ore, limestone, granite, etc.
The PYB 900 spring cone crusher is mining equipment with excellent performance and reliable structure and has broad application prospects.
