When building a 150t/h sand production line, it is a reasonable choice to choose the VSI-8518 sand making machine. The following is a detailed analysis based on the parameters of the VSI-8518 sand making machine and the configuration of the sand making production line:
1. VSI-8518 sand making machine parameters:
• Processing capacity: Depending on the feeding method, the processing capacity of the VSI-8518 sand making machine varies. In the waterfall and center feeding methods, its processing capacity is 200-260t/h; and in the full center feeding method, the processing capacity is 100-130t/h. This shows that no matter which feeding method is used, the VSI-8518 sand making machine can meet the production needs of 150t/h.
• Feed particle size: The maximum feed particle size allowed by the VSI-8518 sand making machine is 40mm (soft material) and 35mm for hard material. This means that in the production line, it is necessary to ensure that the particle size of the raw materials does not exceed these limits.
• Motor power: The VSI-8518 sand making machine uses a 4P 180Kw motor, which ensures its powerful crushing capacity and high production efficiency.

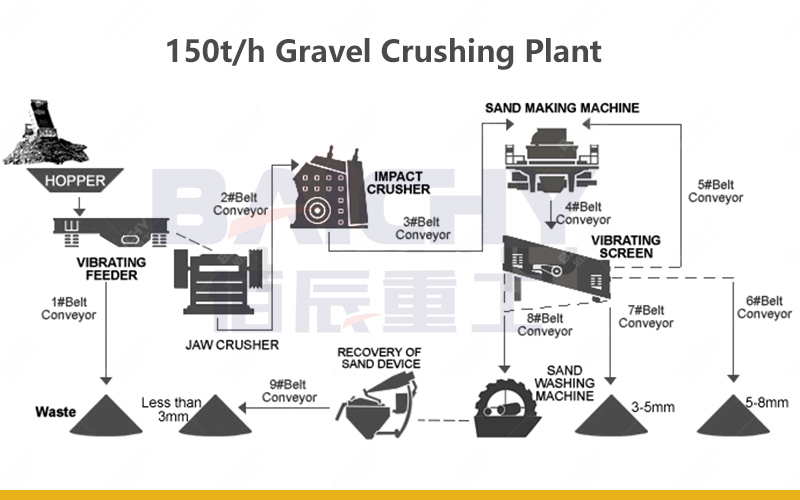

2. Production line configuration:
• Raw material preparation: The production line needs to be equipped with appropriate feeding equipment, such as a vibrating feeder, to ensure that the raw materials can enter the crushing equipment evenly and stably.
• Coarse and fine crushing: Before the VSI-8518 sand making machine, a jaw crusher or a cone crusher is usually required for coarse and fine crushing to crush the raw materials to a particle size suitable for the VSI-8518 sand making machine.
• Screening and conveying: In order to obtain sand particles that meet the requirements, the production line needs to be equipped with a vibrating screen to screen the crushed materials. At the same time, a conveyor is required to transport the raw materials, crushed materials and finished sand particles to different workstations.
• Sand washing and dust removal: If the cleanliness requirements of the finished sand particles are high, a sand washer can be configured for cleaning. In addition, in order to protect the environment, the production line also needs to be equipped with dust collection equipment to collect and treat the dust generated during the production process.
The VSI-8518 sand making machine is an ideal choice for building a 150t/h sand making production line with its efficient processing capacity, stable performance and wide range of applications.
When configuring the production line, it is necessary to reasonably configure the feeding, crushing, screening, conveying, sand washing and dust removal equipment according to the characteristics of the raw materials and production needs to ensure the smooth operation of the production line and product quality.
