Crawler Jaw Crusher

What is Crawler Jaw Crusher?

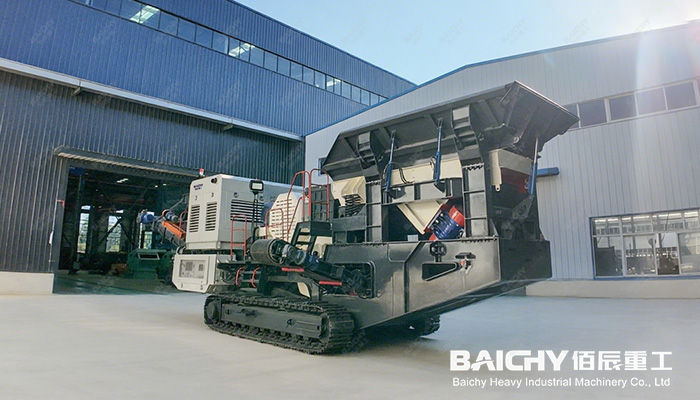

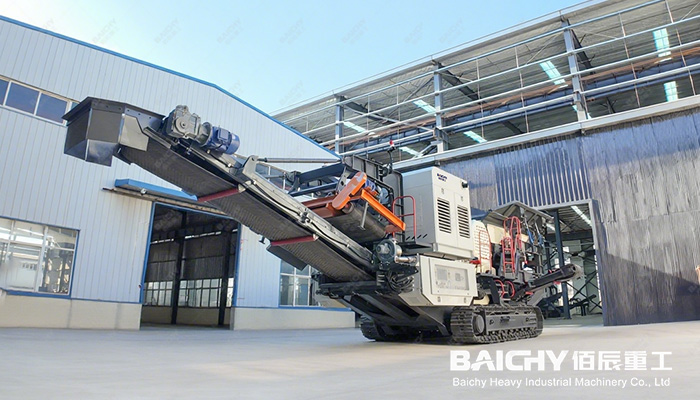

Crawler jaw crusher is a mobile device that integrates crushing, screening, and other functions. It uses a crawler chassis for walking and moving and has high flexibility and adaptability. The core crushing component of this crushing station is the jaw crusher, which uses the squeezing effect between the movable jaw and the fixed jaw to crush materials.

Crawler jaw crusher is widely used in mining, construction, metallurgy, chemical industry, and other industries, especially in occasions where frequent changes of work locations are required or large amounts of materials need to be processed. Its appearance not only improves the efficiency and quality of crushing and screening operations but also brings greater flexibility and convenience to users.

Technical Parameters

Model	Feeder	Jaw Crusher	Main Discharge Belt	Side Discharge Belt	Capacity
YMC80	G2D8035	C80	B800x9m	B500x3.8m	80-125t/h
YMC96	G2D9638	C96	B1000x12m		100-250t/h
YMC106	G2D1142	C106	B1000x12m		160-360t/h
YMC116	G2D1142	C116	B1200x13m		200-450t/h
YMC120	G2D1242	C120	B1200x13m		300-520t/h

Performance Advantage of Crawler Jaw Crusher

Solid structure and reliable operation

The crawler jaw crusher adopts a solid modular, non-welded frame structure with high fatigue strength and impact resistance, and can operate stably in harsh working environments. At the same time, key components of the equipment, such as the movable jaw assembly, are manufactured with high-quality materials and advanced processes to ensure the long-term stable operation of the equipment.

Efficient crushing and precise screening

The jaw crusher has a high crushing ratio and production capacity, and can quickly crush materials into products of the required particle size. At the same time, the vibrating screen equipped with the equipment can accurately screen out materials of different particle sizes to meet the different needs of users.

Strong flexibility and wide adaptability

The crawler chassis enables the equipment to easily cope with various terrain conditions, including rugged mountains, wetlands, etc. In addition, the equipment can also be flexibly configured according to user needs to meet the crushing and screening needs of different occasions.

Working Principle of Crawler Jaw Crusher

Crawler jaw crusher is a mobile device that integrates crushing and screening functions. It uses a crawler chassis for walking and moving and has high flexibility and adaptability. The core crushing component of this crushing station is the jaw crusher, which uses the squeezing effect between the movable jaw and the fixed jaw to crush the material.

The working principle of the crawler jaw crusher is mainly based on the principle of flexural extrusion crushing. The motor drives the belt and pulley, and the movable jaw moves up and down through the eccentric shaft to crush the material. With the continuous rotation of the motor, the movable jaw of the crusher moves periodically to crush and discharge the material, realizing batch production. After the material is crushed, it is screened by the vibrating screen to obtain products of different particle sizes.
