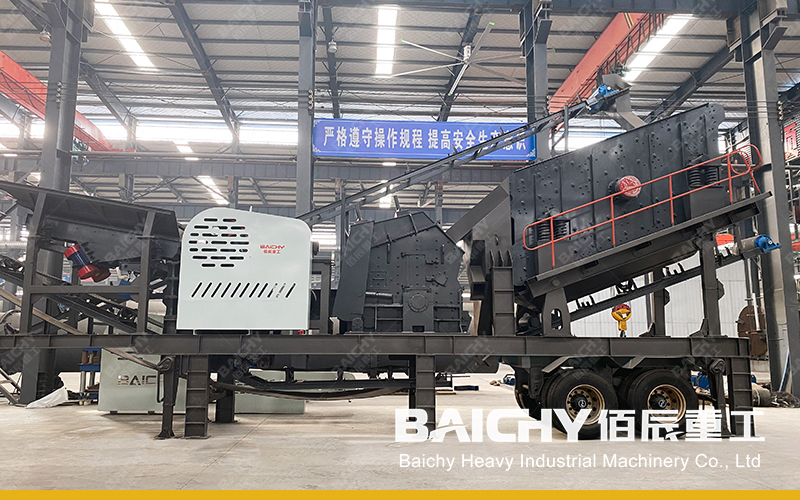

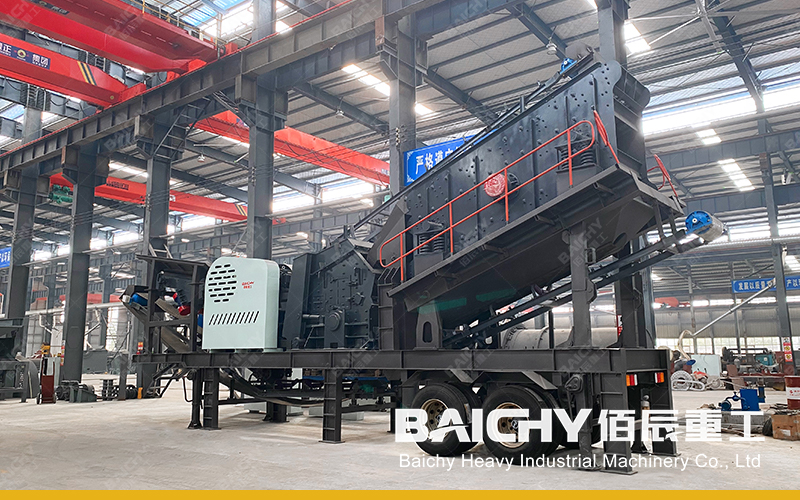

The MF1010E46 modular mobile crushing station has a capacity of 50tph and is composed of a complete crushing system consisting of a ZSW8530 feeder, a PE400x600 jaw crusher, a PF1010 impact crusher, a 3yk1548 vibrating screen, and B500 and B600 belt conveyors.
The MF1010E46 modular mobile crushing station is an efficient and flexible crushing and screening system suitable for a variety of material handling scenarios, such as mining, construction waste treatment, road construction, etc.
This equipment is specially designed for Mexican customers who have requirements for working space and finished material particle size. This four-combination mobile crushing station solves their problems well.
1. ZSW8530 feeder:
As the first step of the entire crushing process, the ZSW8530
vibrating feeder is responsible for evenly and continuously feeding the original material into the subsequent crushing equipment. Its design usually takes into account the particle size, humidity and conveying capacity of the material to ensure the smooth progress of the crushing process.
2. PE400x600 Jaw Crusher:
The jaw crusher is a primary crushing equipment that crushes materials through the squeezing action between the moving jaw and the static jaw. The PE400x600 model indicates that its feed opening size is 400x600mm, which is suitable for processing medium-hard materials. This system, is mainly responsible for crushing large pieces of material into smaller particles to prepare for the subsequent impact crusher.
3. PF1010 Impact Crusher:
The
impact crusher is known for its high crushing ratio, low energy consumption, and good particle shape. The PF1010 impact crusher has a processing capacity of 50-90tph, which can further refine the material output by the jaw crusher and improve the particle size distribution and shape of the material through impact and rebound.
4. 3YK1548 Vibrating Screen:
The
vibrating screen is used to classify the crushed material according to different particle sizes. 3YK1548 means that it has three layers of screens, and the size and inclination angle of each layer of screens are carefully designed to ensure efficient screening efficiency and accuracy. The screened materials can be collected or further processed separately as needed.
5. B500, B600 belt conveyor:
The belt conveyor is a bridge connecting various crushing and screening equipment, responsible for the transportation of materials. B500 and B600 may represent belt conveyor models of different widths or carrying capacities. They play a vital role in the entire system, ensuring that materials can be smoothly and stably transferred from one device to another.
The entire system achieves efficient conversion from raw materials to finished products through reasonable equipment configuration and process design. Its 50tph (tons/hour) capacity shows that the system can meet medium-scale production needs. At the same time, the mobile design makes the system more flexible and mobile, which is convenient for rapid transfer and deployment between different sites.
