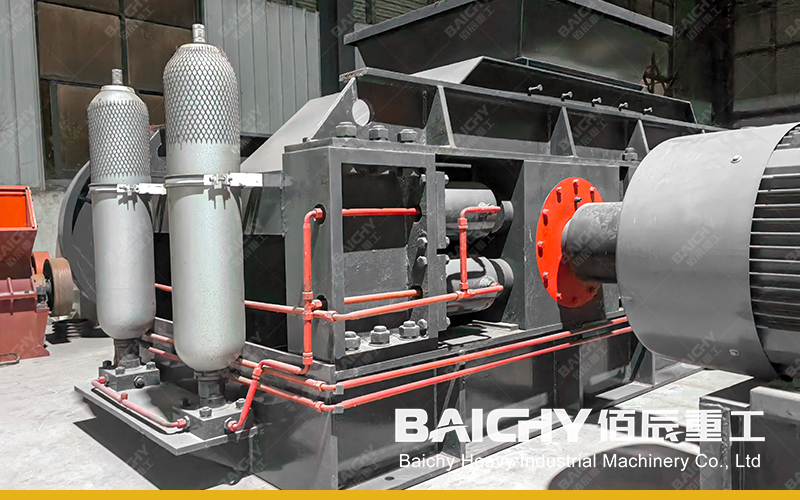

Double-roller sand and gravel crusher, also known as double-roller crusher, double-roller sand making machine, or double-roller machine, is a kind of equipment widely used in the field of sand and gravel crushing and sand making.
Double-roller sand and gravel crushers use the pressure between two rollers rotating in opposite directions to crush materials. When the material enters between the two rollers, it is squeezed and sheared by the rollers to achieve the purpose of crushing. This crushing method is suitable for materials of various hardness. The processed materials have regular shapes and smooth surfaces, which can meet various production requirements.
Double-roller sand and gravel crusher structure
• Frame: Generally made of cast iron, it can also be welded or bolted with steel sections, and it is required to be strong and sturdy.
• Crushing roller: Two rollers rotating in opposite directions arranged in parallel on a horizontal axis are crushing rollers. The roller surface is made of high manganese steel or other wear-resistant materials and is fixed to the hub by parts such as conical arc iron, tension bolts, and nuts.
• Transmission device: The two rollers are driven by a motor through a pulley and rotated in opposite directions.
• Adjustment device: The size of the gap between the two crushing rollers, that is, the size of the discharge port, is adjusted by increasing or decreasing the number of gaskets between the two crushing roller bearings.
• Spring safety device: When the crusher is working, the crushing force generated between the crushing rollers is balanced by the tension of the spring. When the crusher is overloaded, the spring is compressed, forcing the movable bearing to move laterally, the width of the discharge port becomes larger, and non-crushed objects can be discharged.
Double-roller sand and gravel crushers play an important role in construction, roads, railways, water conservancy, and many industrial fields. They are mainly used for medium and fine crushing of ores and rocks with medium hardness or less.
Double-roller sand and gravel crushers play an important role in the field of sand and gravel crushing and sand making with their unique crushing method, wide application field, and reliable performance.
