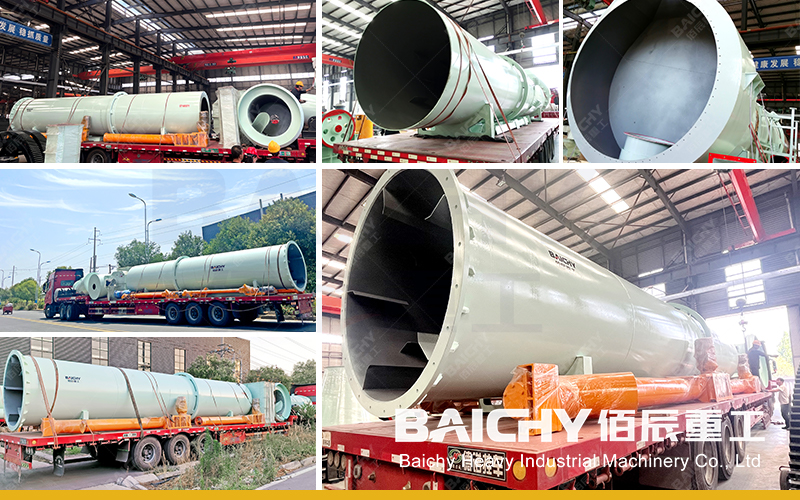

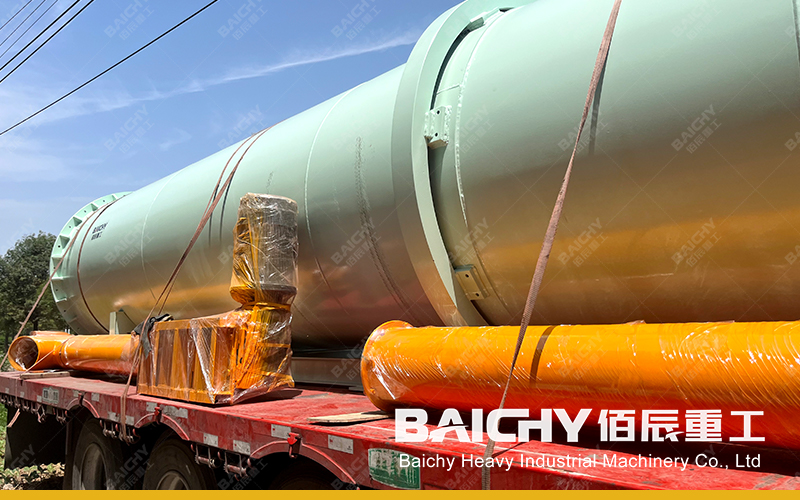

Size: The diameter of the rotary dryer is about 1.8 meters and the length is about 2 meters. This size of dryer is suitable for drying a variety of materials.
Type: It belongs to a single-drum dryer, that is, the main body of the dryer is composed of a cylinder, and the material is dried through the hot air circulation system to exchange heat with the material.
Working principle of single-drum dryer
The working principle of the single-drum dryer is mainly to introduce hot air into the cylinder through the hot air circulation system, exchange heat with the material, and evaporate the moisture inside the material, so as to achieve the purpose of drying. The hot air circulation system ensures full contact between the hot air and the material, improves the heat exchange efficiency and ensures uniform heating of the material.
Structural composition of single-drum dryer
Single-drum dryer usually consists of a heat source, dispersing device, belt feeder, feeder, rotary drum, belt discharger, induced draft fan, discharger, and distribution cabinet. The rotary drum is the main body of the dryer. It rotates horizontally on the supporting wheel through the wheel belts at both ends. The feeding end of the drum is equipped with a hot air furnace device, and the unloading end is equipped with a dust cover and an automatic unloading device.
Features and advantages of single-drum dryer
1. Large processing capacity: The diameter and length of the drying drum are moderate, which can accommodate more materials and improve production efficiency.
2. Good drying effect: Indirect heating is adopted to avoid the heat radiation of the material from the direct heat source, and maintain the quality and nutritional content of the material. At the same time, it is equipped with an independent temperature control system to ensure the uniformity and stability of drying.
3. Low energy consumption and environmental protection performance: The circulating hot air system is adopted to reduce energy consumption. Equipped with a dust removal device to reduce the emission of dust and harmful gases and protect the environment.
4. Simple operation and convenient maintenance: The fully automatic control system is adopted, which is simple and convenient to operate. The structure is simple, easy to clean and maintain, and reduces maintenance costs and time.
