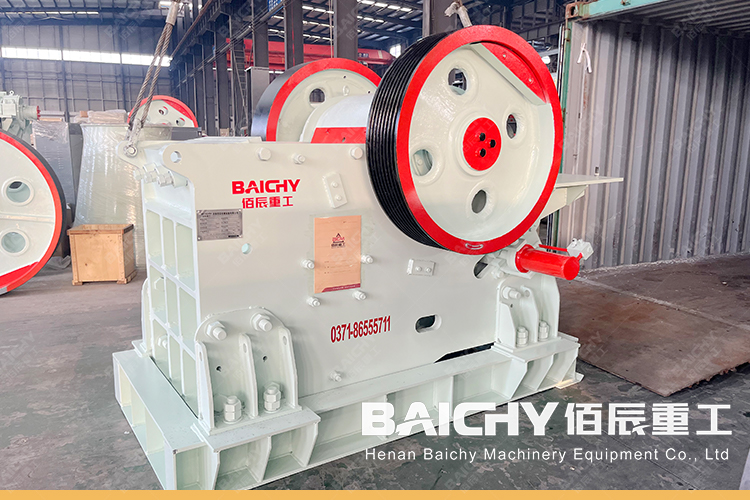

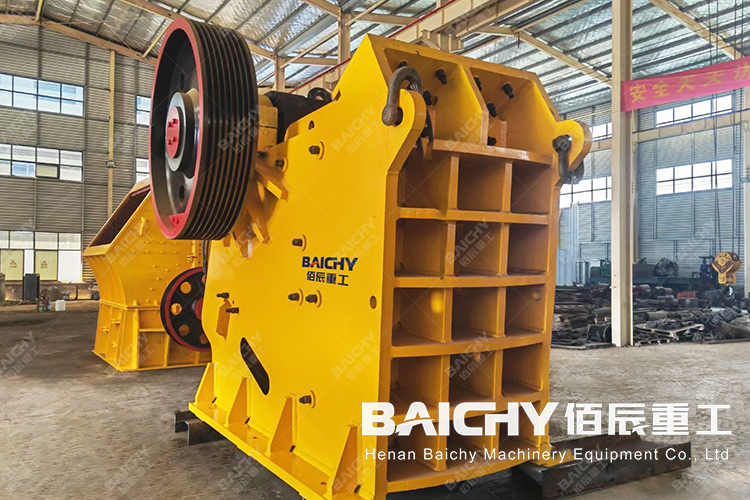

24" x 36" C Series jaw crusher is a high-efficiency crushing equipment designed for market demand. The following are detailed information and features about the equipment:
Introduction to C Series Jaw Crusher:
• C Series jaw crusher is developed and designed in combination with international advanced technology for domestic market demand.
• The equipment adopts advanced design concepts and technologies, and is optimized and manufactured from many aspects such as structure, material selection, process, assembly, etc.
• It is suitable for crushing various hard and highly abrasive rock minerals, such as granite, marble, basalt, etc.
Features and advantages of C Series jaw crusher:
• Compact and reliable structure: It adopts a non-welded split frame structure, and replaces the welded frame with bolted fixing to avoid stress concentration problems.
• Advanced jaw head technology: The jaw head is cast with advanced technology, with high strength and stable performance.
• High-quality spindle: The spindle is forged from high-quality steel, and after quenching and tempering, it has higher yield strength and tensile strength, stable performance and long service life.
• • Reasonable design of crushing chamber: The large centrifugal and large inclination elbow plate design makes the effective stroke at the bottom of the crushing chamber larger and improves the crushing efficiency.
Flexible design of discharge port: The large range of discharge port design can produce products with fine particle size and meet the needs of large output. The hydraulic adjustment of the discharge port makes the operation more convenient and stable.
• Convenient installation: Compared with ordinary jaw crushers, C jaw crusher has a simple foundation, more convenient and practical installation.

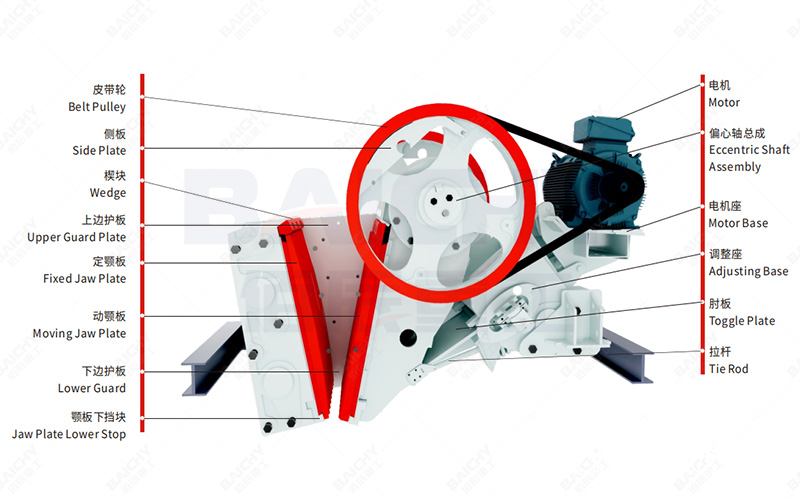

Working principle of C series jaw crusher:
• The motor drives the belt and pulley to swing the movable jaw forward and backward and up and down through the eccentric shaft.
• When the movable jaw pushes the movable jaw plate to move toward the fixed jaw plate, the material is crushed or split.
Subsequently, the movable jaw and the movable jaw plate retreat under the action of the eccentric shaft and spring, and the crushed or split material is discharged from the lower discharge port of the jaw plate.
With the continuous rotation of the motor, the movable jaw of the crusher periodically crushes and discharges materials to achieve batch production.
