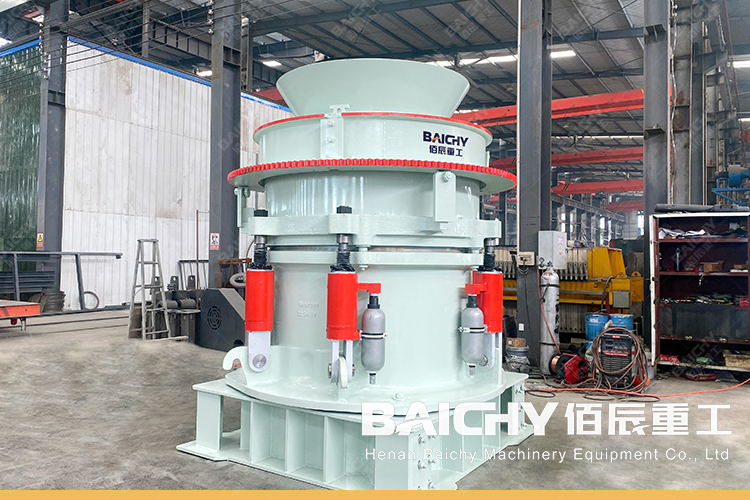

HP series multi-cylinder hydraulic cone crusher is a high-performance crushing equipment, widely used in mining, construction, metallurgy and other industries. The following is a clear introduction to the HP series multi-cylinder hydraulic cone crusher:
1. Structural composition
HP series multi-cylinder hydraulic cone crusher is mainly composed of the following parts:
Frame: The sturdy frame design supports the weight of the entire crusher and ensures the stable operation of the equipment.
Transmission device: The horizontal shaft is driven by the motor, and the eccentric sleeve is driven to rotate by the gear.
Eccentric sleeve: Rotates around the main shaft fixed on the main frame to drive the moving cone to perform crushing operations.
Moving cone, crushing wall, rolling mortar wall: The moving cone drives the crushing wall to do a swinging motion, and the distance between the moving cone and the rolling mortar wall changes periodically to complete the crushing of the material.
Hydraulic system: Provides the hydraulic power required in the crushing process, ensures the stable operation of the equipment, and provides overload protection when necessary.
Adjustment device: Used to adjust the size of the crushing chamber and control the crushing particle size.
2. Working Principle of HP Series Multi-cylinder Hydraulic Cone Crusher
The working principle of HP Series Multi-cylinder Hydraulic Cone Crusher is to drive the horizontal shaft to rotate through the motor, and drive the eccentric sleeve to rotate around the main shaft fixed on the main frame through the gear. The friction of the eccentric sleeve drives the moving cone to drive the crushing wall to do a pendulum motion, and the distance between the crushing wall and the mortar wall changes periodically, thereby completing the crushing of the material. At the same time, the hydraulic system can automatically adjust the size of the discharge port as needed to meet the requirements of different particle sizes.
3. Performance characteristics of HP Series Multi-cylinder Hydraulic Cone Crusher
High performance: Suitable speed, large eccentricity and optimized crushing chamber design determine the high performance of HP Series Multi-cylinder Hydraulic Cone Crusher.
High content of fine particles: The optimized crushing chamber design, high-frequency crushing, large eccentricity combination and lamination crushing principle make the material smaller than the crusher discharge port have excellent particle shape and higher content of fine particles.
Large output: The sturdy frame design, increased eccentricity and the application of high-strength alloy steel materials enable the crusher to withstand greater crushing force, thereby achieving a large crushing ratio and high production capacity.
Long operation time and shorter maintenance time: The two-way over-iron release hydraulic cylinder provides over-iron protection, and the dual accumulator improves the response speed of the hydraulic system to avoid over-iron shutdown. The fixed-stroke hydraulic cavity clearing function can quickly resume production.
Simple and fast operation and maintenance: The hydraulic motor drives the discharge port adjustment, and the one-button fixed cone rotation and disassembly function are designed to make the replacement of wear-resistant parts convenient and fast, reducing maintenance costs.
High degree of automation: The PLC control system is adopted, and all data and working status are displayed on the touch screen, which is more convenient to operate. Large production lines can achieve fully automatic operation.
4. Technical parameters of HP series multi-cylinder hydraulic cone crusher
The technical parameters of HP series multi-cylinder hydraulic cone crusher vary from model to model, but the following are some common parameter ranges:
Feed particle size: Depending on the model, the feed particle size varies, generally between 200mm and 300mm.
Discharge port adjustment range: adjustable between 5mm and 51mm.
Production capacity: Depending on the model and material characteristics, the production capacity ranges from hundreds of tons to thousands of tons per hour.
Motor power: Depending on the model and power requirements, the motor power ranges from hundreds of kilowatts to kilowatts.
5. Application areas
HP series multi-cylinder hydraulic cone crushers are widely used in mining ore crushing, high-hardness rock material crushing, building material crushing and other fields, such as granite, basalt, diabase, shale, quartz stone and other materials. At the same time, it is also suitable for aggregate processing in cement plants, sand and gravel yards, concrete mixing stations and other industries.
