PF series impact crushers have various models:
• PF-1007: This model of impact crusher is usually used for medium and fine crushing operations, and can handle materials of various hardnesses. It has the characteristics of simple structure, easy maintenance, and high crushing efficiency.
• PF-1210: Similar to PF-1007, PF-1210 is also a medium and fine crushing equipment, but it may have improved processing capacity and feed particle size, suitable for larger production lines.
• PF-1214: This model of impact crusher may have higher production capacity and crushing efficiency, suitable for occasions with higher requirements for crushing particle size.
• PF-1310, PF-1315: These models of impact crushers usually have larger feed ports and crushing chambers, and can handle larger pieces of material while maintaining high crushing efficiency and product quality.
• PF-1520: As a large equipment in the PF series, the PF-1520 impact crusher may have higher production capacity and stronger crushing capacity, suitable for large mines and building materials production lines.
Impact crusher is a high-energy and low-consumption crushing equipment with an international advanced level. Its performance plays an irreplaceable role in various ore fine-crushing equipment, and it is the most effective, practical, and reliable stone-crushing machine.

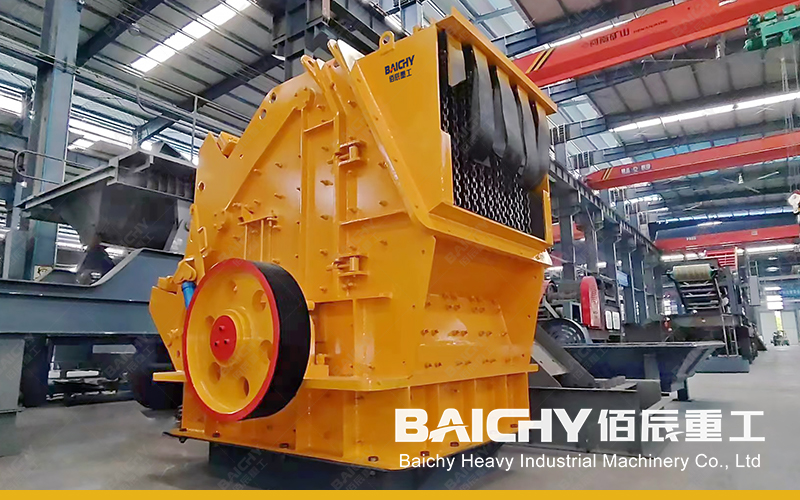

An impact crusher uses a rotating rotor or impeller to impact and crush materials at high speed. It has the characteristics of a large crushing ratio, strong adaptability, simple structure, small size, convenient operation, and easy maintenance.
Structure of impact crusher
Impact crusher is mainly composed of seven parts: feed hopper, distributor, vortex crushing chamber, impeller, main shaft assembly, base transmission device, and motor. All parts work together to ensure the efficient and stable operation of the equipment.
Working principle of impact crusher
The working principle of impact crusher is mainly to use impact action for crushing. The material fed into the crusher is violently impacted by the rotor or impeller rotating at a certain speed around the central axis, and is crushed for the first time; then the material obtains energy from the rotor or impeller and flies to the hard machine wall at high speed, and is crushed for the second time; the material that rebounds during the impact process is crushed again by the rotor or impeller, and the difficult-to-crush material is clamped and sheared by the rotor or impeller and the fixed plate, and the crushed product is discharged from the bottom. In this process, the material undergoes multiple impacts and crushings and finally reaches the required particle size.
Impact crushers are widely used in the following fields:
1. Mining industry: used to crush various ores, such as river pebbles, limestone, granite, basalt, diabase, andesite, ore tailings, etc., and is important equipment for the end sand-making process and medium and fine crushing operations of the sand and gravel production line.
2. Construction industry: used to produce construction aggregates and machine-made sand to meet the different needs of the construction industry.
3. Cement industry: as crushing equipment in the cement production process, it improves the fineness of cement raw materials.
4. Metallurgical industry: used to crush various metal ores and waste slags in the metallurgical process.
5. Other industries: such as refractory materials, abrasives, glass raw materials, and other industries, impact crushers are also widely used to crush and process materials.
